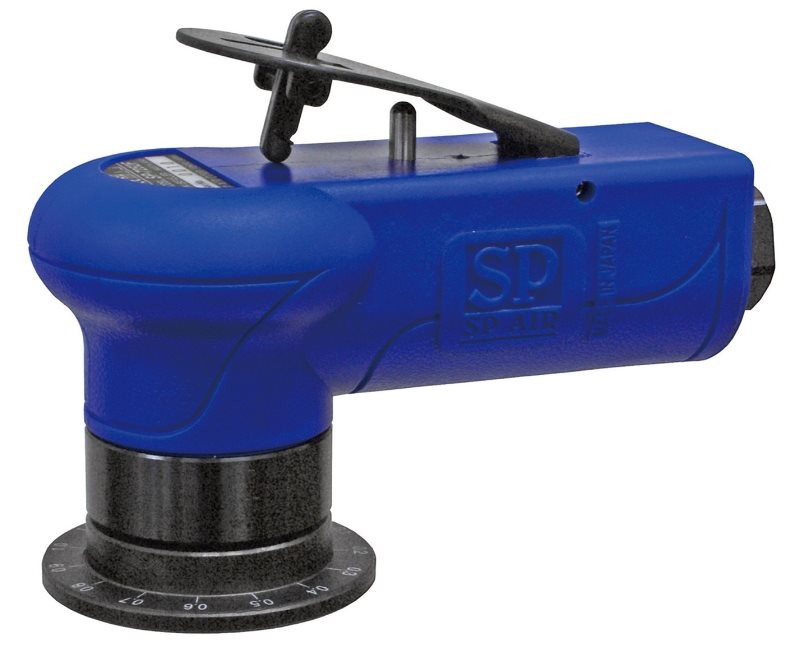

7252F - BEVELER B2 AIR verdens mindste håndholdte afgratnings maskine - ref. 24200 -

Features and Benefits:

The compact design offers great ergonomics.
■ Weight only 400 g / 0.88 lb.

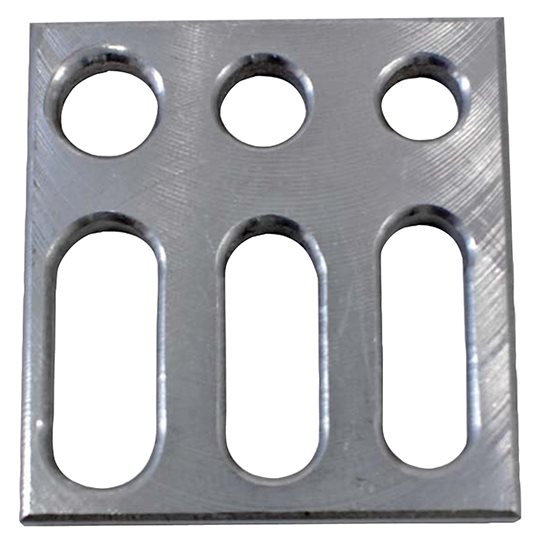

■ Edge machining by rounding R1.5 mm / 0.06 in - edge preparation before painting.
■ Powerful and reliable pneumatic drive.
■ Precision machining scale allows for more precise machining.
Technical data:
Bevel angle: 45°
Bevel width (hypotenuse): 2 mm / 0.08 in as a maximum
Rounding radius: R 1,5 mm / 0.06 in
Speed 23,000 rpm.
Feeding: manual
Air consumption 320 l/min

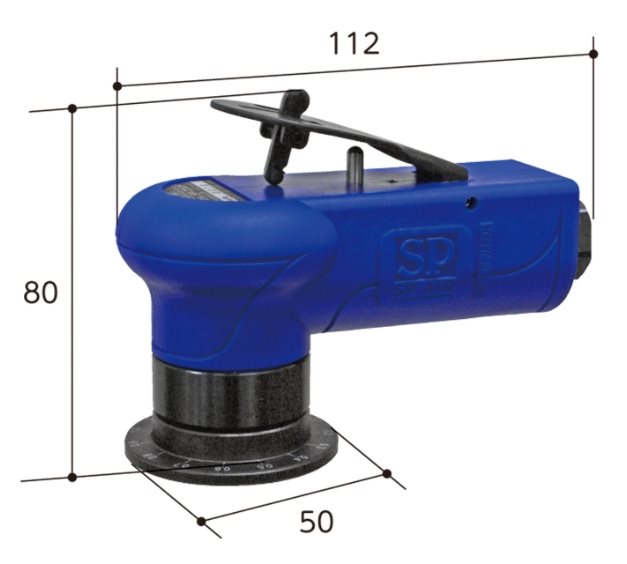

Dimensions: 112 x 60 x 48 mm / 4.4 x 2.36 x 1.9 in
Weight: 400 g / 0.88 lb
Number of cutting inserts: 3 pcs

• 3 blade cutting head with changeable blades
• Depth flange scale for setting cutting depth
• Cuts circles with a minimum of 0.27-Inch and material thickness of 0.1-inch
• Free speed 23,000 RPM and air consumption 2.5CFM

B2 AIR beveling machine is a great tool for fabrication, marine and automotive along with industrial application and when beveling the edges of metal gauge panels and metal tables (in motorcycle fabrication). The product features are 3 blade cutting head with changeable blades, depth flange scale for setting cutting depth, palm size tool cuts radius chamfers and straight chamfers, cuts circles with a minimum of 0.27-inch and material thickness of 0.1-inch, free Speed 23,000 RPM, overall length 4.375-inches, weight is 0,88 lbs. and air consumption 2.5CFM.
