OD120

Max 160mm
Tube end deburring
Round, square or profiles

Tube end deburring of round or rectangular tubes.
OD tube deburring machines clean and remove tube sharp edges caused by sawing.
Enables simultaneous outside and inside tube burrs removal without rotating the tube.
Deburrs round, square, rectangular and many different tube and profile shapes deburring in few seconds.

Features and Components

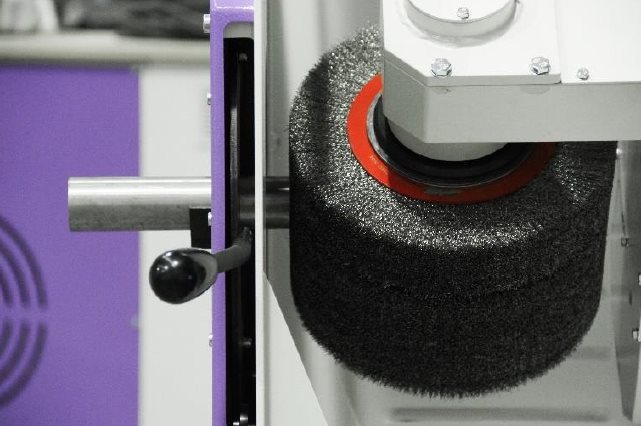

Double Rotation Brush: The operator does not need to rotate the tube. The wire brush rotates all around the shape of the tube, deburring all internal and external edges in just a few seconds
Tube Clamping System: A fast clamping system adapts to different types and shapes of tubes and profiles.
Different Geometries: The OD120 deburrs many different shapes, from round to square and rectangular tubes and even aluminum profiles, treating all the edges uniformly.
Burr Box: The heavier burrs fall and are deposited in a plastic box under the deburring head.
Control Panel: Brush speed can be regulated on the control panel (18 or 35 m/s). This panel also includes on and off buttons.

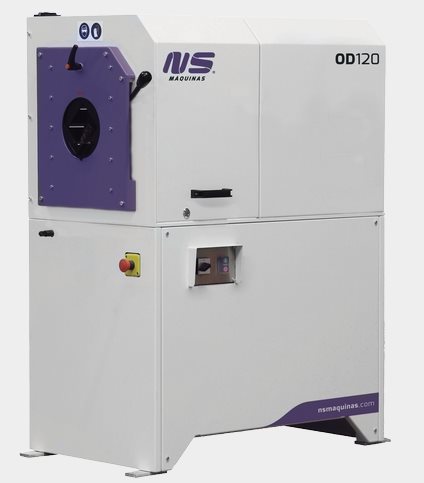

OD120 Orbital Tube Deburring Machine
Including:
- Two-speed motor
- Double brush rotation (tube does not rotate)
- Manual brush wear compensation
- CE safety protections
(Brushes not included)

NOTES
Price is without transport and training:
