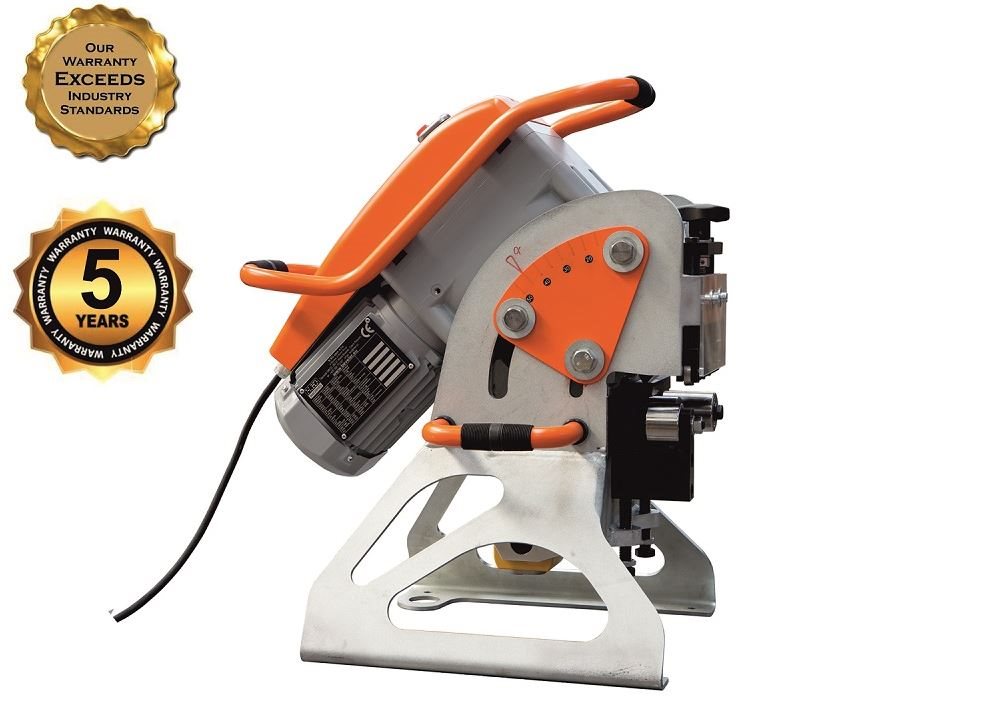

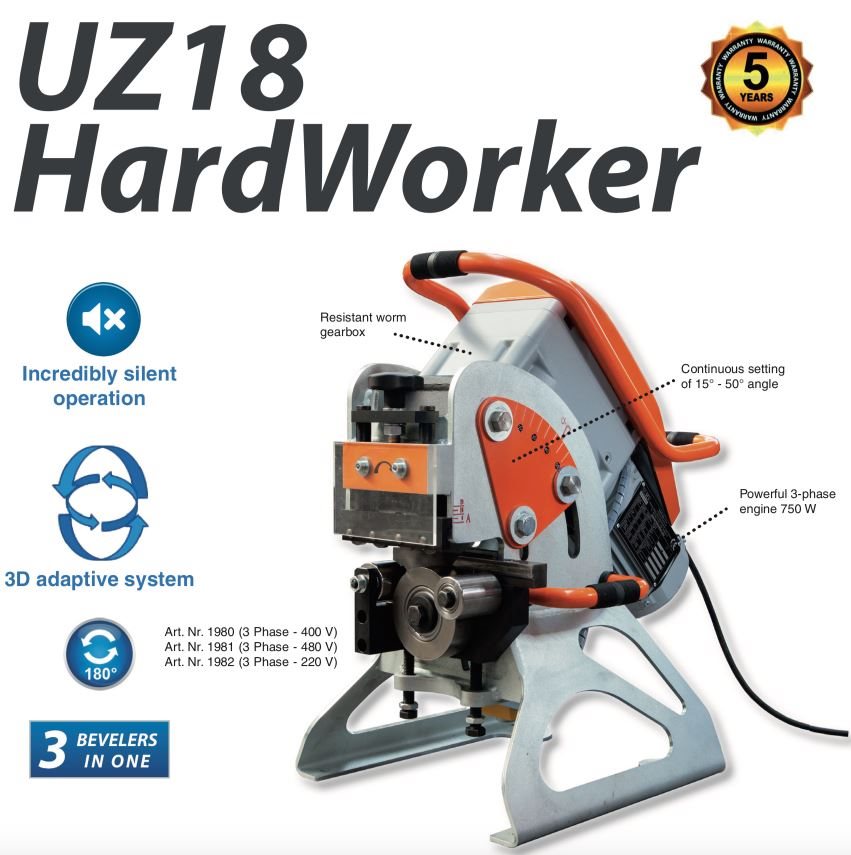

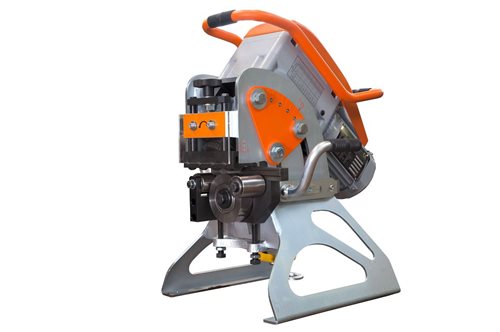

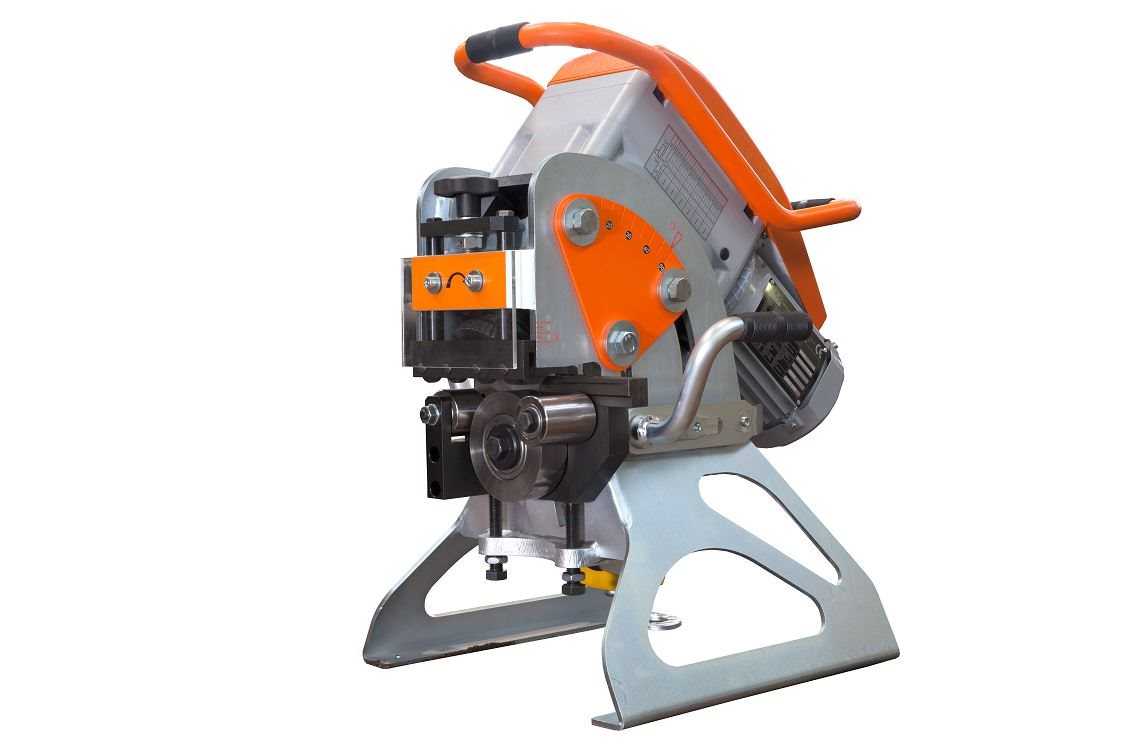

N022 - UZ18 Hardworker 400V, 3 Phase

The UZ18 Hardworker machine is one of the most powerful bevelling machines with the automatic feed on the market. It is
Suitable not only for workshops, but also for an assembly on-site. It has a continuous working angle adjustment system.
Thanks to the special design of the drive system, the UZ18 Hardworker is also suitable for tougher materials. The machine is
equipped with the automatic feed. Working with UZ18 Hardworker is therefore very comfortable.
􀁑􀀃 For steel (strength up to 600 MPa / 87 022 PSI), brass, copper and aluminium.
􀁑􀀃 For bevelling material with minimum dimensions - width 70 mm / 2.75 in, length 150 mm / 5.9 in, thickness 6 mm / 0.23 in.
􀁑􀀃 Thickness of bevelled material 6 to 40 mm / 0.23 to 1.57 in.
􀁑􀀃 The bevel angle is easily adjustable from 15° to 50° - smoothly, without the need to replace any part.
􀁑􀀃 The equipment is capable of performing double-sided bevelling (X, K) without the need for material handling.

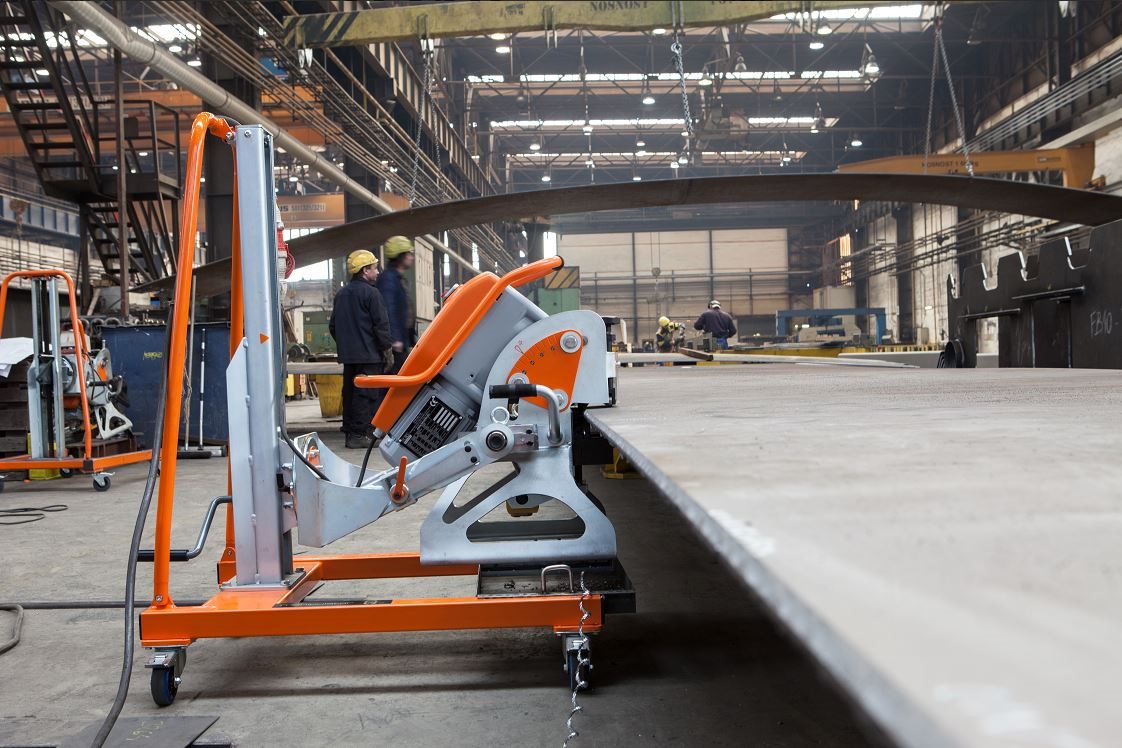

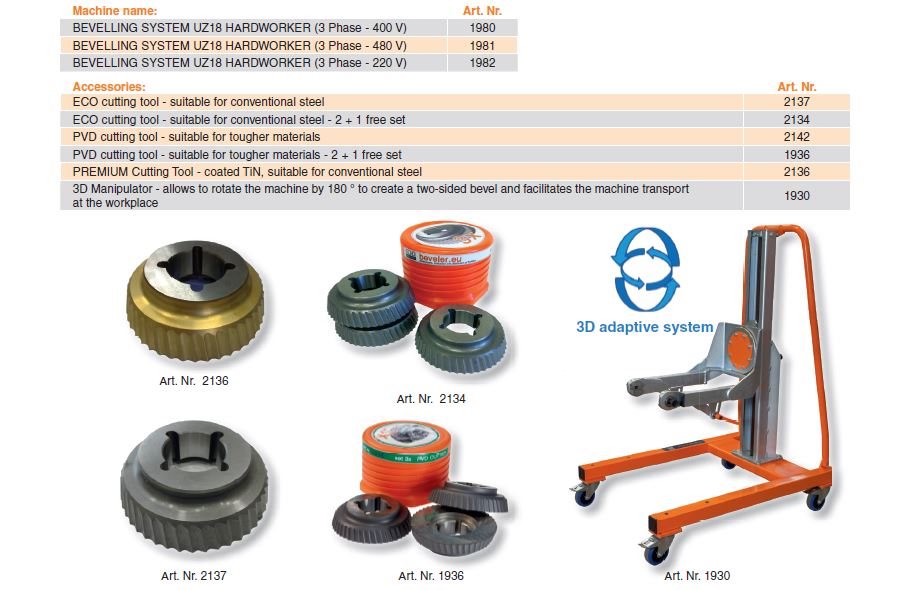

􀁑􀀃 Easy connecting to the 3D Manipulator for easier operation and handling.
􀁑􀀃 The machine is equipped with an automatic feed.
􀁑􀀃 The possibility of stationary and mobile use.
􀁑􀀃 The machine works on large workpieces without any support.
􀁑􀀃 Smaller parts of the material are inserted directly into the machine.
􀁑􀀃 Discounted price when purchasing UZ 18 Hardworker together with the 3D Manipulator.
Technical data:
Max. bevel width: 18 mm / 0.71 in (600 MPa / 87 022 PSI)
Continuously adjustable angle: 15° - 50°
Thickness of bevel. material: 6 to 40 mm / 0.23 to 1.57 in
Engine: 750 W
Feed: 1,9 m/min. / 6.23 ft/min.
Weight: 110 kg / 242.5 lb
Dimensions (WxHxD): 438 x 719 x 644 mm
17.24 x 28.3 x 25.35 in
Included in price:
Bevelling system UZ18 Hardworker.
Tools for an operator.
Packet in a wooden crate.
User manual.
