P013.-SBM 500.-with milling head10 inserts per milling head

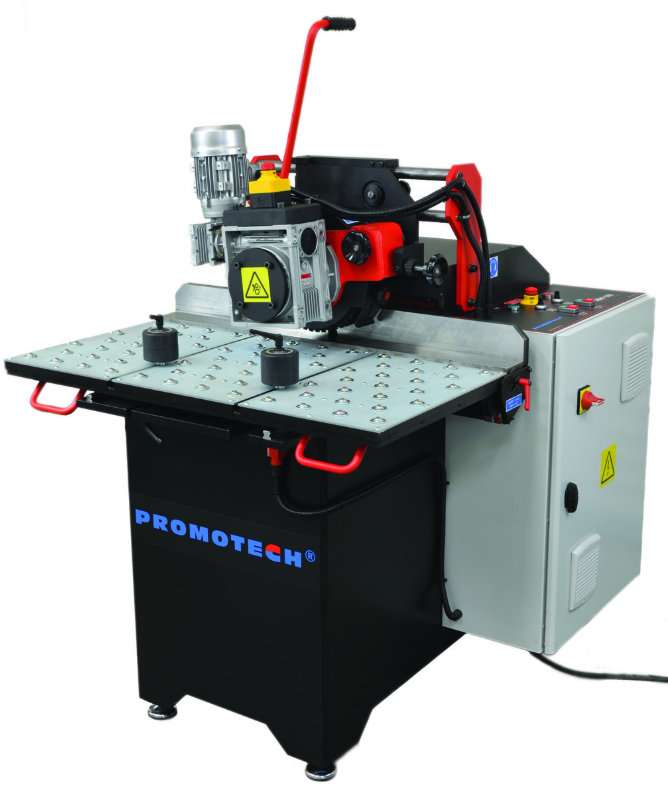

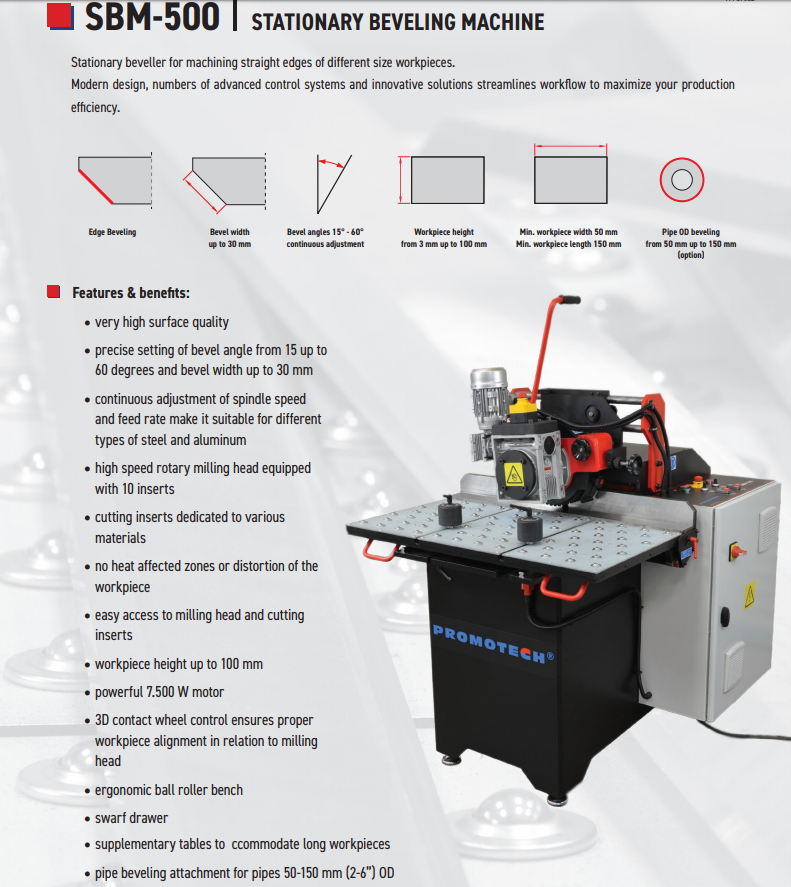

Stationary beveller for machining straight edges of different size workpieces. Modern design, numbers of advanced control systems and innovative solutions streamlines workflow to maximize your production efficiency.
Key features

• workpiece height up to 100 mm
• powerful 7.500 W motor
• ergonomic ball roller bench
• swarf drawer
• supplementary tables to ccommodate long workpieces
• pipe beveling attachment for pipes 50-150 mm (2-6”) OD
• 3D contact wheel control ensures proper workpiece alignment in relation to milling head
• very high surface quality
• high speed rotary milling head equipped with 10 inserts
• cutting inserts dedicated to various materials
• no heat affected zones or distortion of the workpiece
• easy access to milling head and cutting inserts
• precise setting of bevel angle from 15 up to 60 degrees and bevel width up to 30 mm
• continuous adjustment of spindle speed and feed rate make it suitable for different types of steel and aluminum

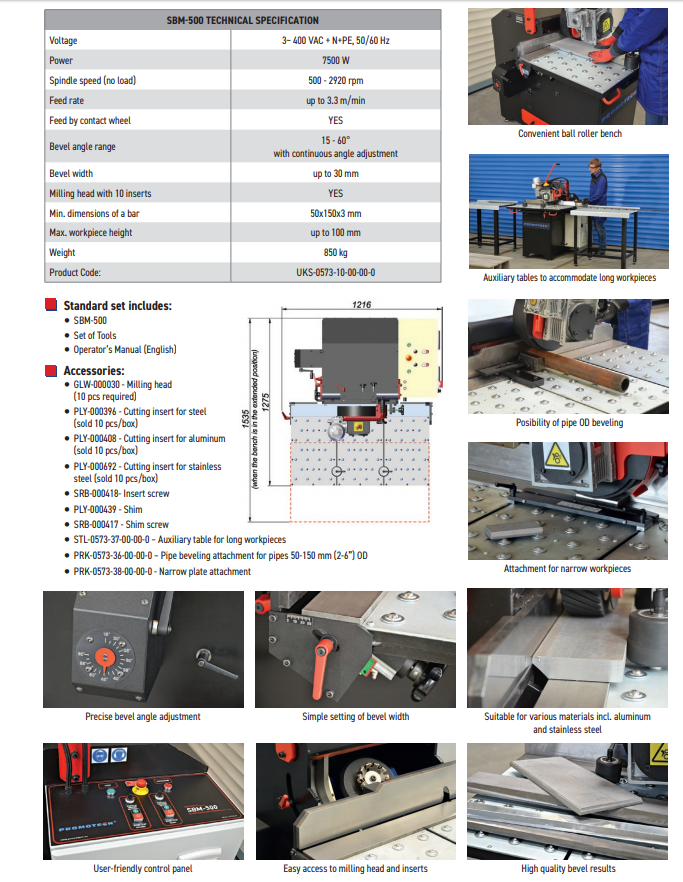

Standard set includes:
• SBM-500
• Set of Tools
• Operator’s Manual (English)
Accessories:
• GLW-000030 - Milling head (10 pcs required)
• PLY-000396 - Cutting insert for steel (sold 10 pcs/box)
• PLY-000408 - Cutting insert for aluminum (sold 10 pcs/box)
• PLY-000692 - Cutting insert for stainless steel (sold 10 pcs/box)
• SRB-000418- Insert screw
• PLY-000439 - Shim
• SRB-000417 - Shim screw
• STL-0573-37-00-00-0 – Auxiliary table for long workpieces
• PRK-0573-36-00-00-0 – Pipe beveling attachment for pipes 50-150 mm (2-6”) OD
• PRK-0573-38-00-00-0 - Narrow plate attachment
