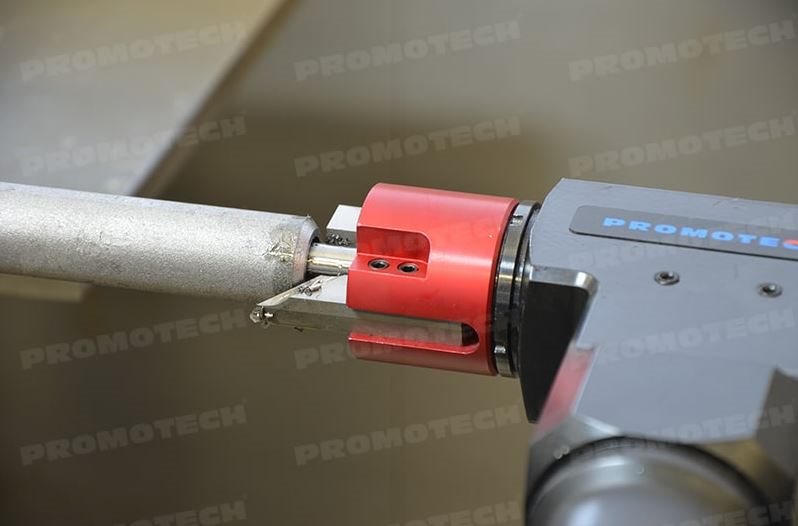

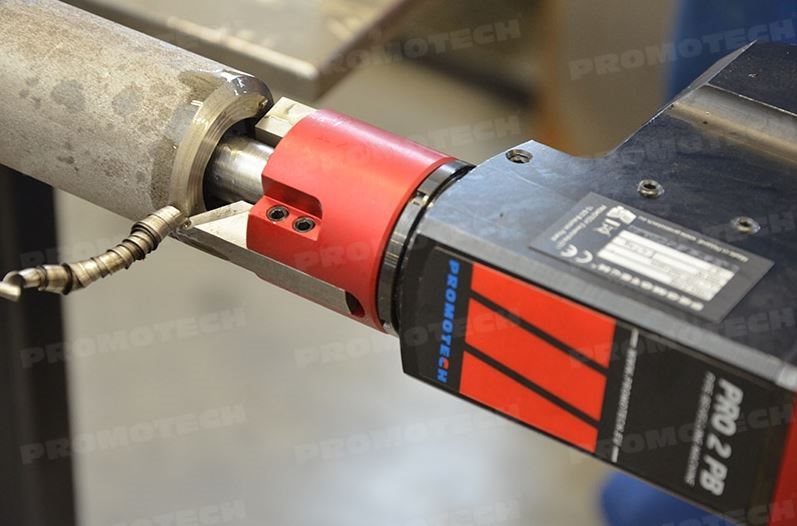

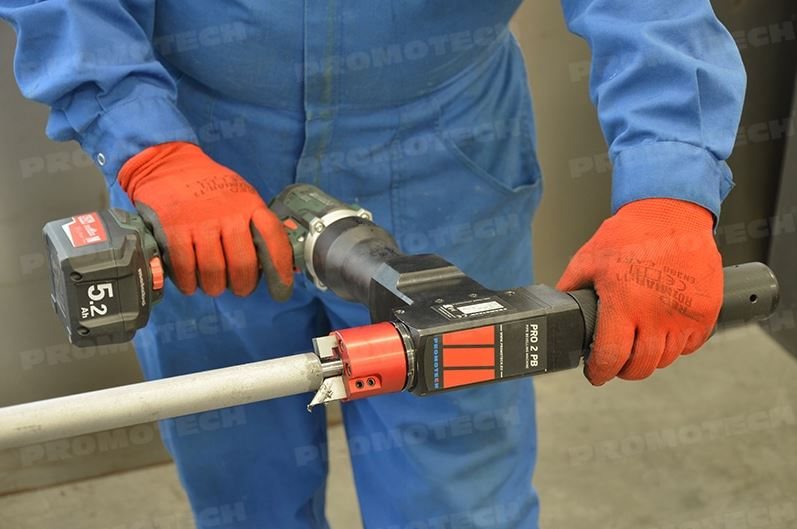

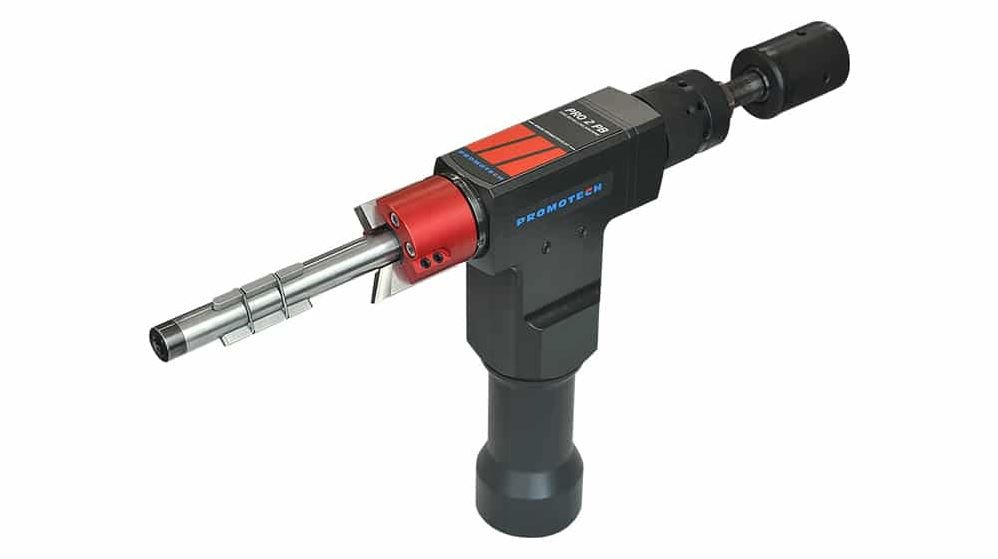

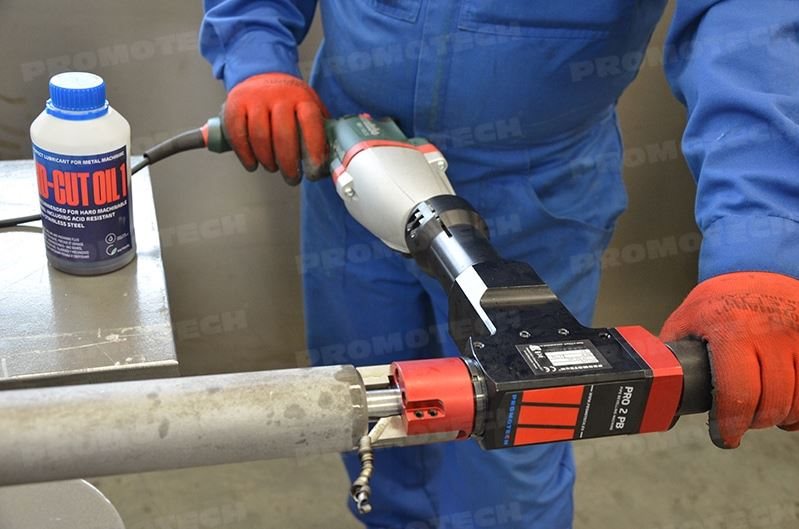

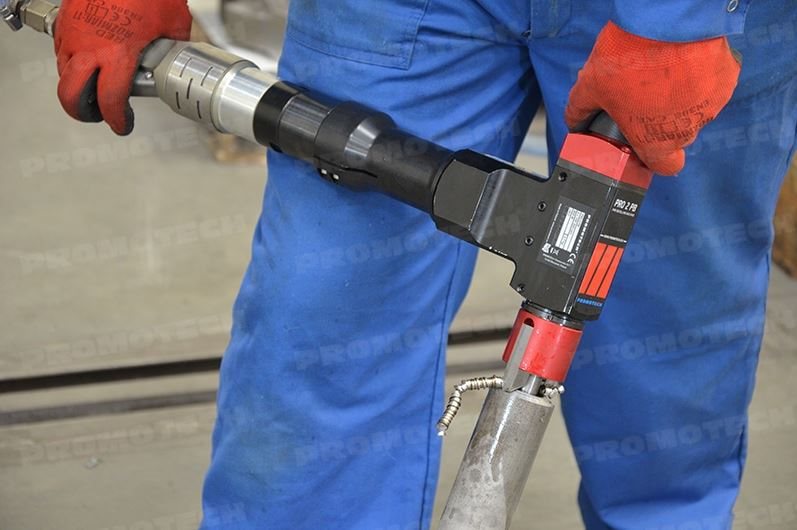

PRO-2 PB Beveling machine (without motor, tool bits)

PRO 2 PB is a compact, handy pipe beveller that mills pipes made of carbon and stainless steel, aluminum alloys, and
copper-nickels. The machine can face off and bevel pipes from inner diameters (ID) of 22 mm (0.87”) to outer diameters
(OD) of 48 mm (1.89”).
Small pipes from ID 15.5 mm (0.61”) up to OD 30 mm (1.18”) can be beveled with optional small mandrel set.
PRO 2 PB is able to mill also larger pipes from ID 42 mm (1.65”) up to OD 60.3 mm (2.37”) by means of an optional extension
set.
Its exceptionally narrow housing (only 48 mm wide) makes
it perfectly suited to space restricted areas such as boiler
water walls.
PRO-2 PB incorporates
overload systems incl. wet
multi-disk friction clutch to
prevent gear damage if the
tool gets stuck.
Standard shipping set:

• Beveling machine (without motor, tool bits)
• Metal box
• Standard self-centering expandable mandrel for pipe ID Ø 18 – 42 mm (0.70 – 1.65”)
• 2 sets of jaws (NO. 4, 5), 3 sets of jaw blocks (no. 6, 7, 8) and 5 sets of springs (no. 4, 5, 6, 7, 8) for standard mandrel
• Tool bit holder
• Spring gauge
• Handle
• Coolant container with nozzle
• Set of tools
• Operator’s Manual

Product Code: UKS-0567-10-00-00-0
