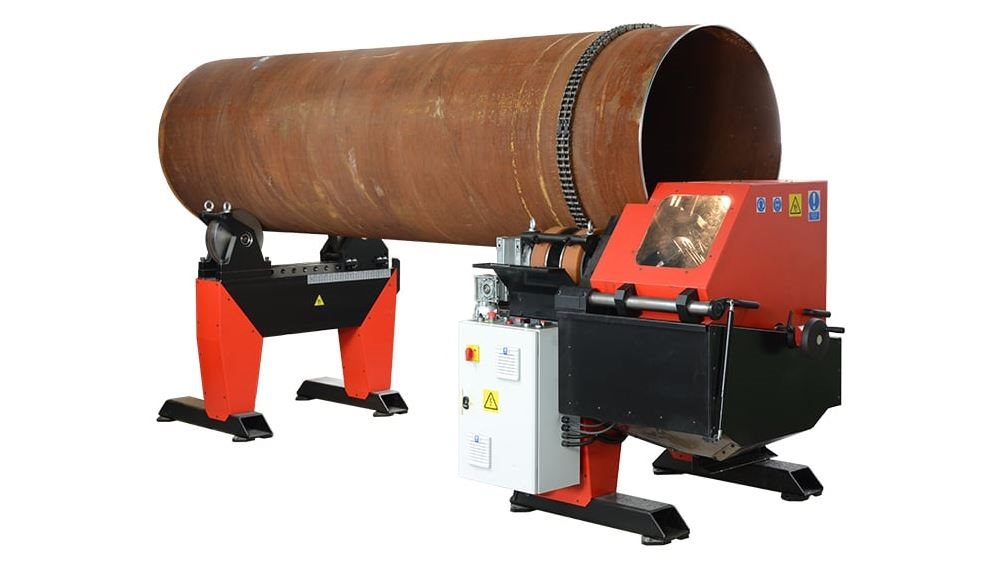

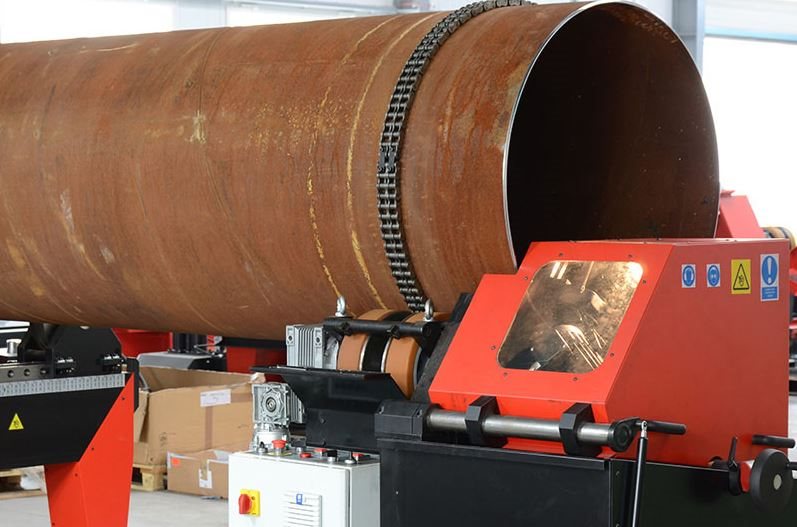

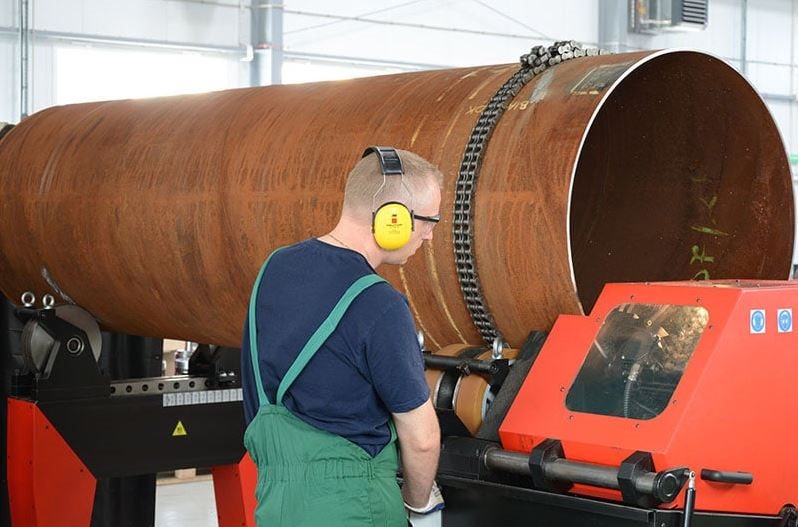

PRO-40 PBS stationary pipe beveling machine

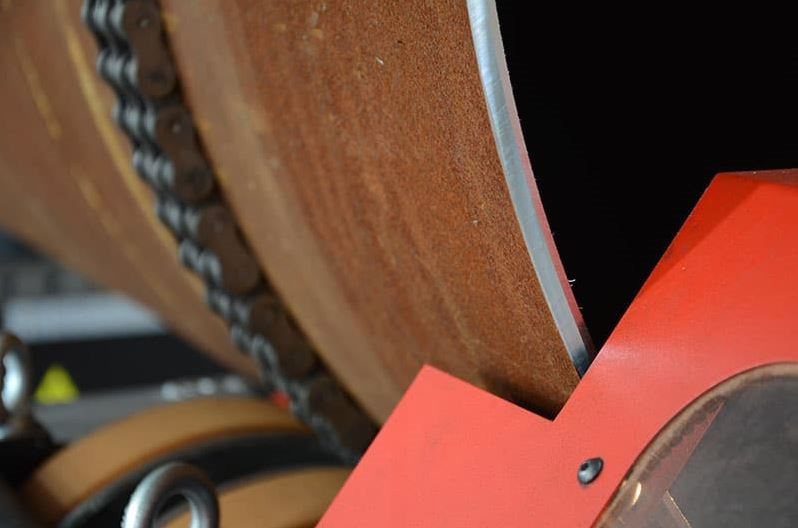

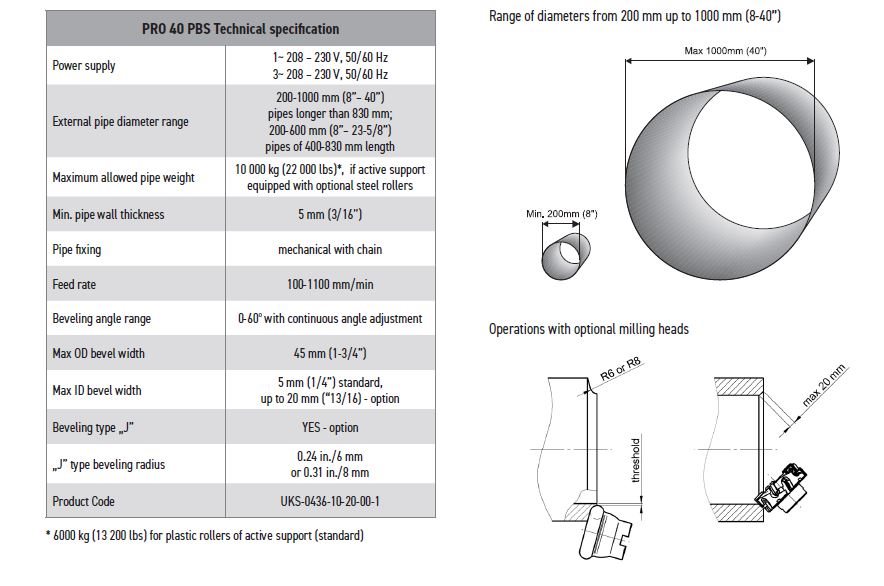

PRO 40 PBS is designed for beveling and facing pipes, tanks or tubes in a range of diameters from 200 mm to 1000 mm (8-40”). High-speed rotary milling head with replaceable inserts enables effective and efficient machining with bevel widths up to 45 mm (1-3/4”) and angles between 0o and 60o.

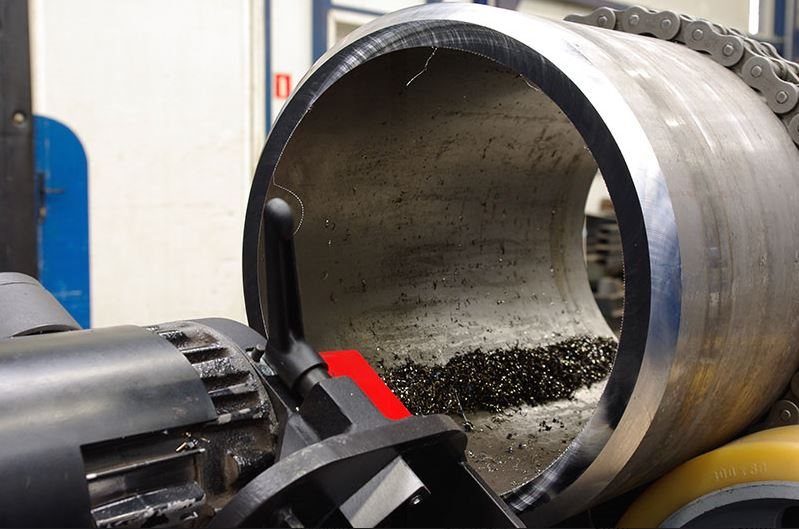

Internal beveling and J-groove end preparation is optionally available.

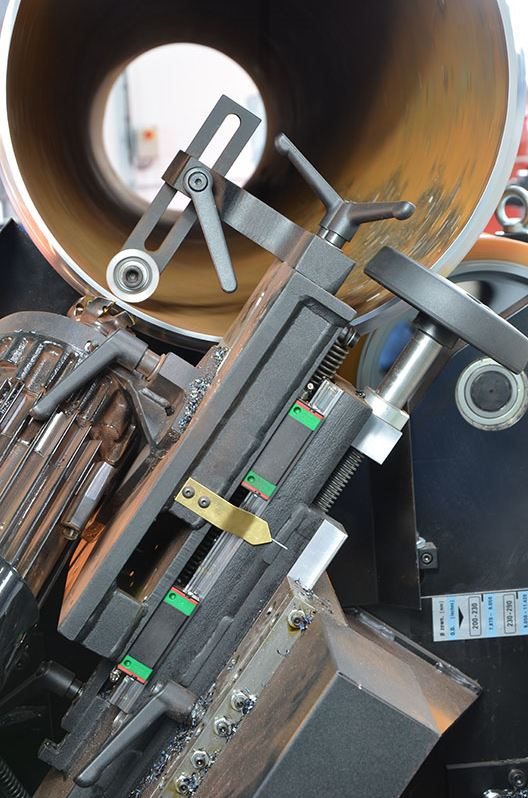

Use of heavy duty milling head in PRO 40 PBS offers accurate bevels in a fraction of the time compared to traditional single point machining. This feature saves time and money by excellent efficiency.
Standard shipping set:
• stationary pipe beveling machine

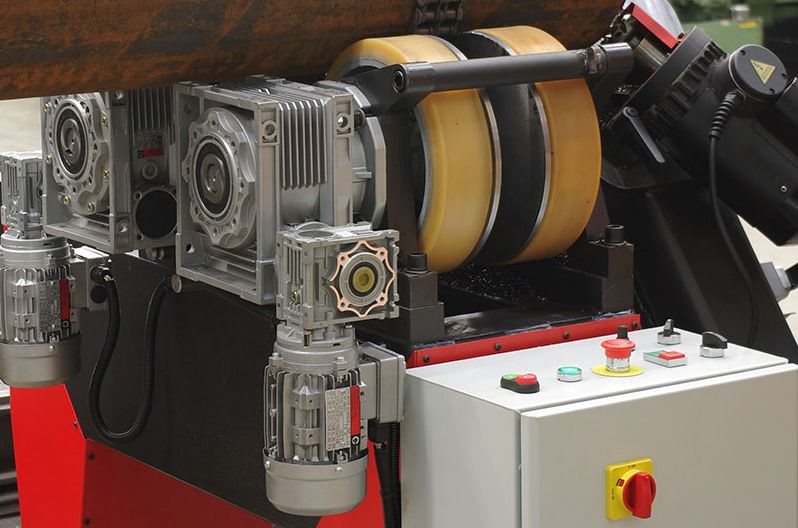

• active support (with plastic rollers)
• passive support (with steel rollers)
• standard milling head with 7 cutting inserts
• set of guiding chains
• 10 mm hex wrench
• 8 mm hex wrench
• 5 mm hex wrench
• torx T15P screwdriver
• Operator’s Manual
• wooden box

Product code: UKS-0436-10-20-00-1
