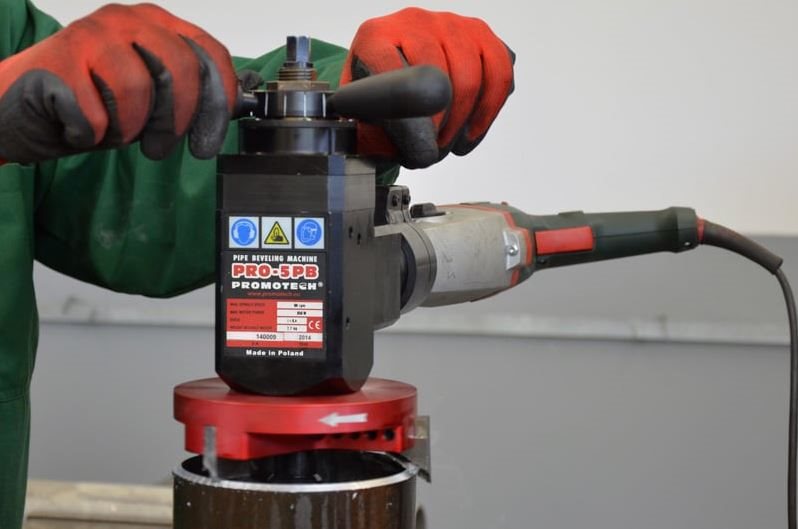

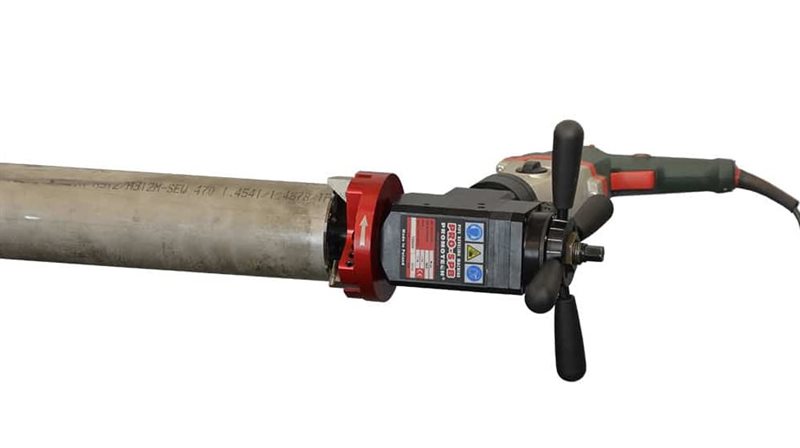

PRO-5 PB machine (without motor, tool bits)

PRO-5 PB is a handy, portable pipe beveling machine suitable for milling edges of pipes made of
carbon and stainless steels, aluminum alloys and copper-nickels.

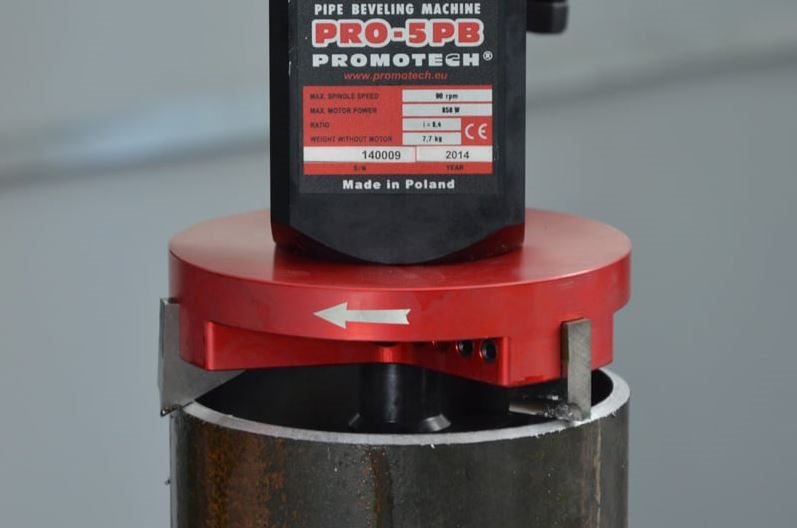

It can be used efficiently by a single operator. Self-centering expandable mandrels provide quick
and proper alignment to a pipe or a tube prior to machining operations.

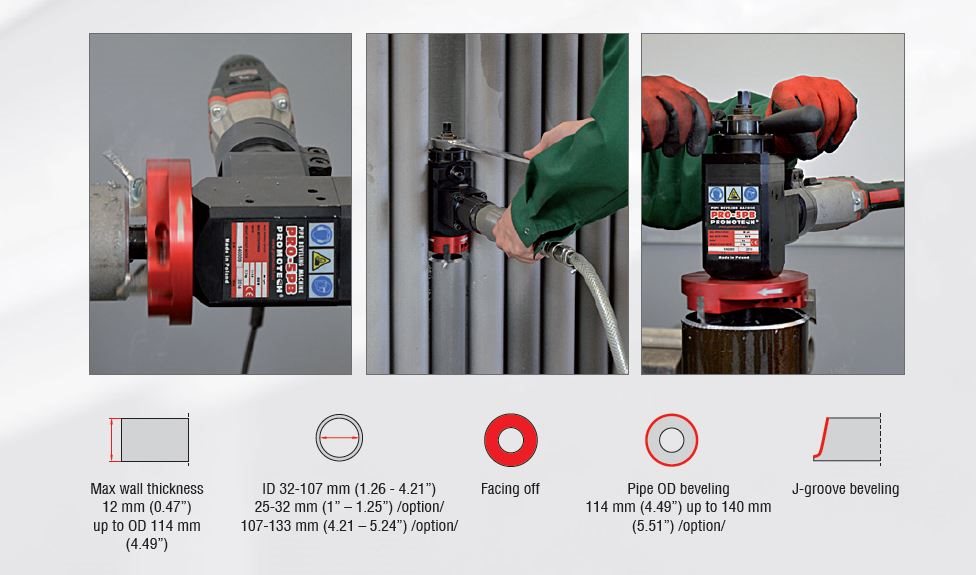

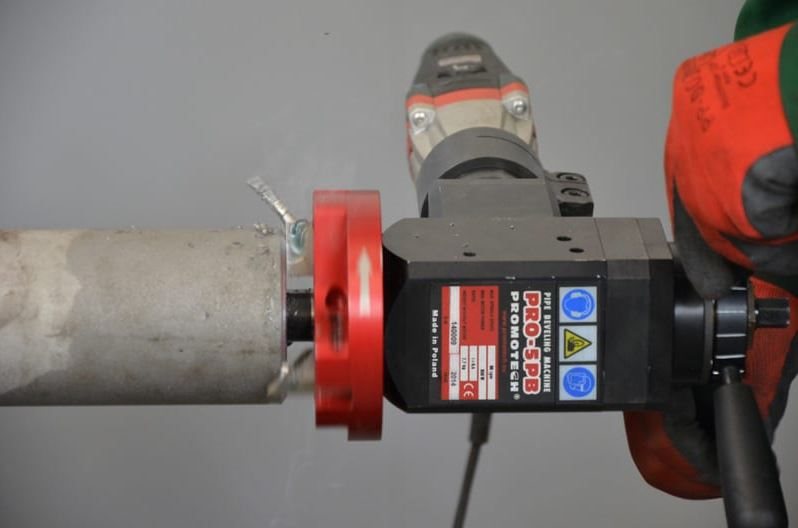

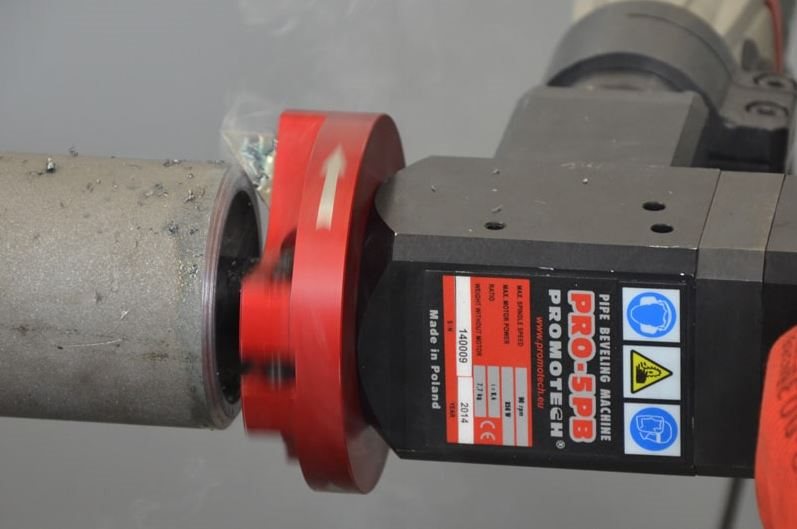

Depending on the tool bits in use PRO-5 PB can perform external beveling, J-beveling, internal
calibration and facing pipes from inside diameters of 32 mm (1.26’’) to outside diameters
of 114 mm (4.49’’) or up to 140 mm (5.51”) as option. All these weld prep operations are made fast
and easy. Up to three tool bits can be mounted and work, simultaneously.
According to users preferences and depending on site conditions PRO-5 PB machine can be operated
with a high quality powerful pneumatic motor, top quality high torque electric motor or battery drive.

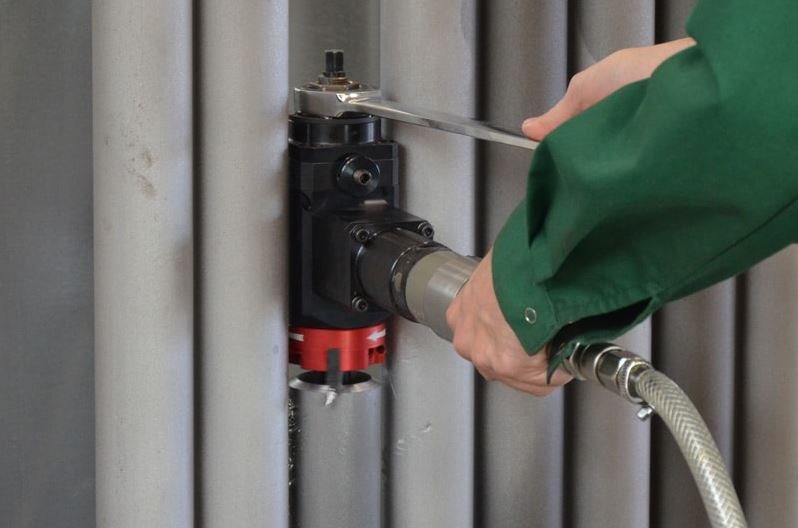

Optional small spindle disc and ratchet wrench enable pipe machining in difficult to access and
space restricted areas.

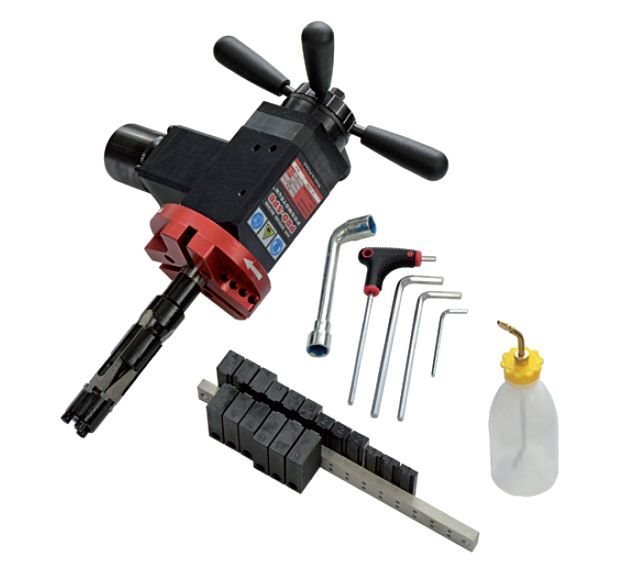

Standard shipping set:
• PRO-5 PB (without motor, tool bits)
• Metal box
• Standard self-centering expandable mandrel for
pipe ID Ø 32 – 107 mm (1.26 – 4.21”)
• 118 mm spindle disc
• Jaw blocks (1,2,3,4,5,6) – 3 sets
• Set of tools
• Coolant container
• Operator’s manual

Product Code: UKS-0472-10-00-00-0
