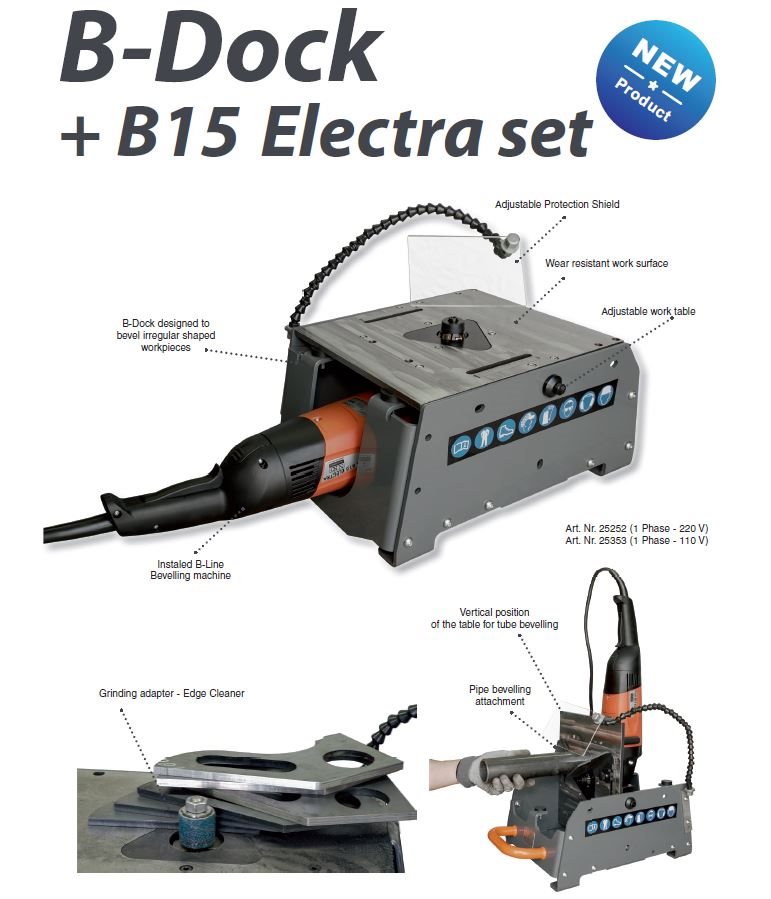

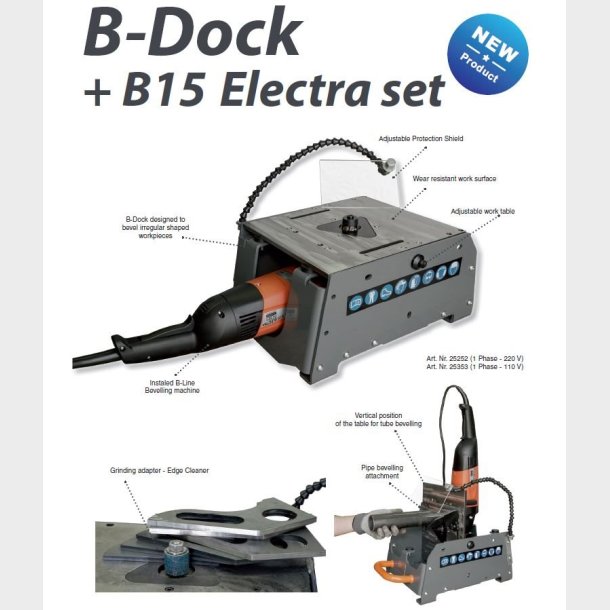

Dock station B-Dock + B15 ELECTRA set- Edge rounding function, beveling of pipes- High efficiency motor manufactured by FEIN POWER TOOLS
(Maximum bevel width 5 mm / 0.2 in.)
Dock station B-Dock enables the B15 Electra to be used stationary.It is deigned for beveling small workpieces which would be hard or impossible to clamp and bevel the standard way.The system retains all advantages of the hand-held machine B15 Electra.The B-Dock system makes it possible to bevel irregular shapes, straight workpieces and holes.Radiuses edges are also possible with the radius milling head.Specialty guide attachments and an easy, vertical worktable adjustment allow for beveling of pipe and tube.By purchasing the set B-Dock + B15 Electra you are getting a universal beveling system.The B15 Electra can be used independently from the B-Dock as a hand-held beveling machine.

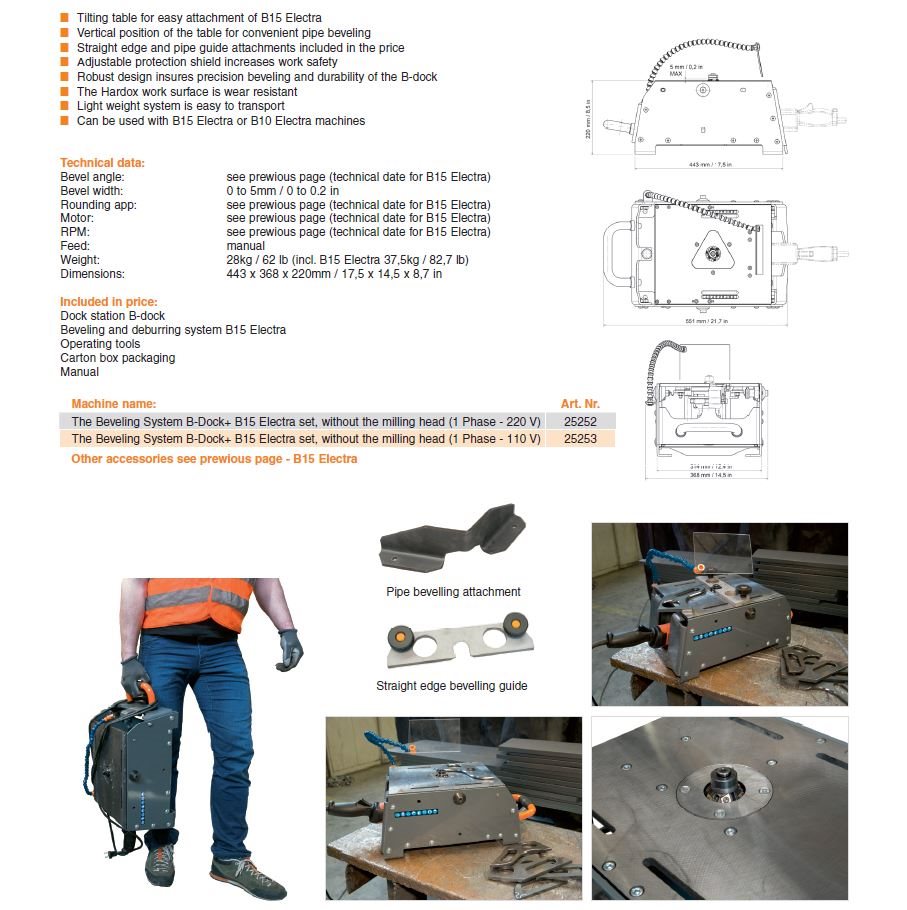

Tilting table for easy attachment of B15 Electra
Vertical position of the table for convenient pipe beveling
Straight edge and pipe guide attachments included in the price
Adjustable protection shield increases work safety
Robust design insures precision beveling and durability of the B-Dock
The Hardox work sufrace is wear resistant

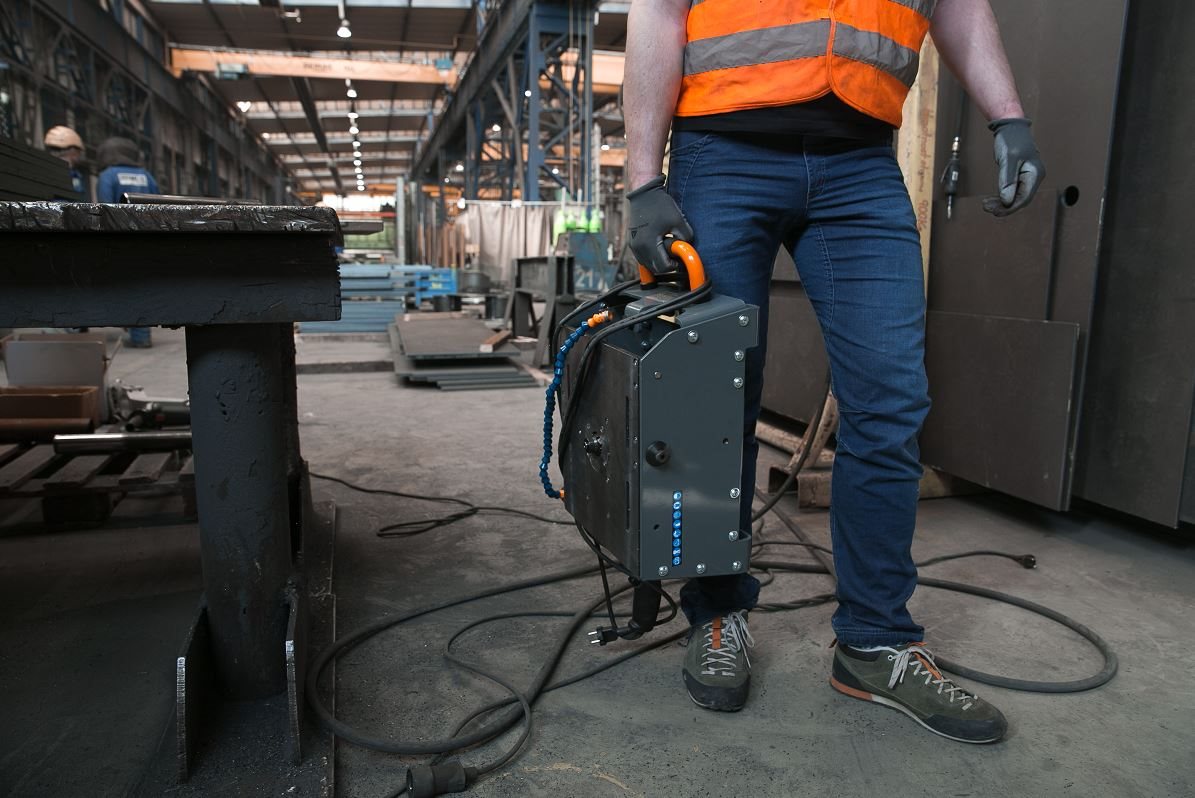

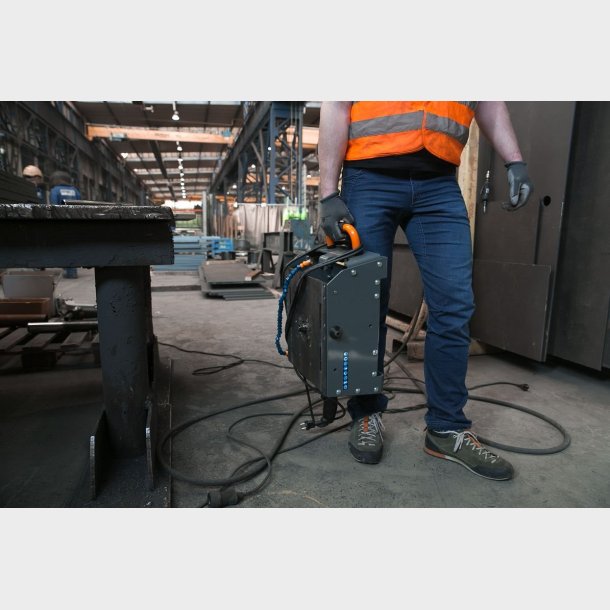

Light weight system is easy to transport
Can be used with B10 Electra or B15 Electra machines
Manufactured in Czech Republic
B15 ELECTRA
(Maximum bevel width 15 mm / 0.6 in.)
Designed for bevelling and deburring workpieces, internal and external radiuses and holes.Specially designed for producing bevels and welding preparation.Powerful electric drive for extreme loads.
Scale for accurate bevel size adjustment.
For bevelling and deburring steel, aluminium and other materials.
Replaceable head for changing bevel angle.
Handheld powerful equipment.
Swivelling ergonomic handle.
Edge rounding function, preparation before surface treatment.
Manufactured in Czech Republic, with a high performance German manufactured the motor.
Technical data:
Max. bevel width B-Dock + B15 Electra:
0 to 5 mm / 0 to 0.2 in
Max. bevel width B15 Electra:
0 to 15 mm / 0 to 0.6 in < 400 MPa / 58 015 PSI0 to 8 mm / 0 to 0.3 in > 400 MPa / 58 015 PSI
Bevel angle:
replaceable head 0° / 30° / 37,5° / 45° / 50° / 60° - other angles on demand
Rounding Radius:
R 2,5 mm / R 3,5 mm / R 4 mmR 0.1 in / R 0.14 in / R 0.16 in
Motor: 2.500 W / 2.000 W
Speed:6600 RPM
Feeding: manual
Weight: 9,5 kg / 20.9 lb
Number of cutting inserts: 6 pcs
Dimensions: 443 x 368 x 220 mm / 17.5 x 14.5 x 8.7 in
