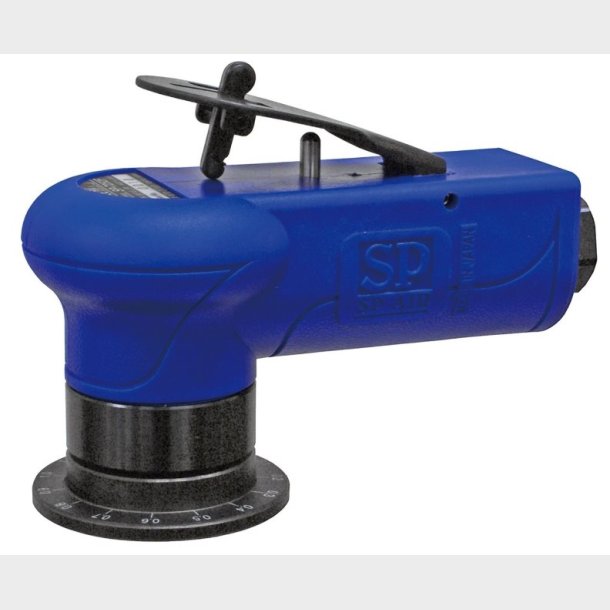

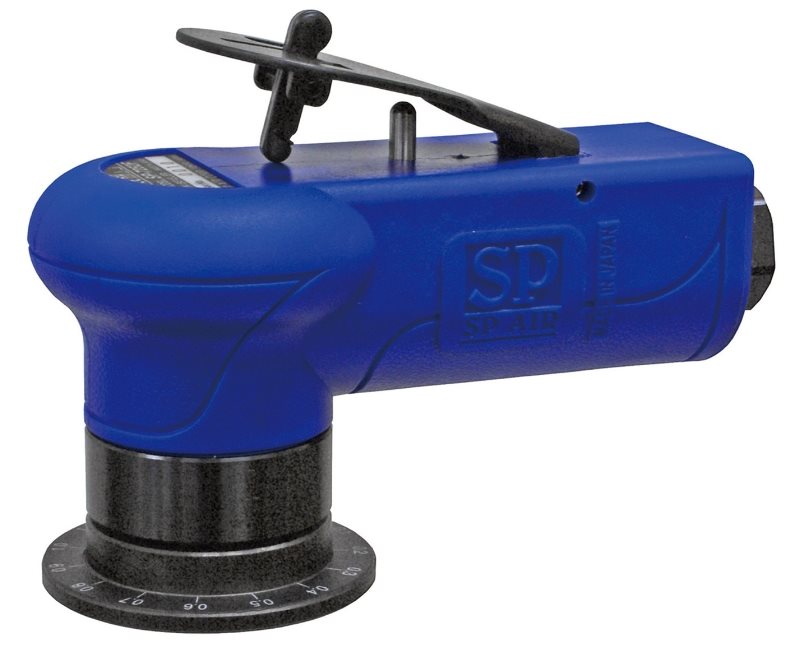

7252F - BEVELER B2 AIR verdens mindste håndholdte afgratnings maskine - ref. 24200 -

4.458,00 DKK

Dette er verdens mindste håndholdte afgratnings maskine, der er perfekt ned til små huller på bare 6mm, Man kan let og hurtigt fjerne grater og samtidig give en perfekt afslutning af produktet.
Man slipper helt for at skulle bore med undersænkning.

Compact size that fits in your palm! Efficient cutting with the patented cooling system.

* Palm size ? Air cooling system (Patented).
* Triangular cutting tip for 3 times use.
* Easy to adjust cutting depth with graduated flange
Se også produktbeskrivelse

Model/Varenr.: 24200.nko
pcs

Features and Benefits:
The compact design offers great ergonomics.
? Weight only 400 g / 0.88 lb.
? Edge machining by rounding R1.5 mm / 0.06 in - edge preparation before painting.
? Powerful and reliable pneumatic drive.
? Precision machining scale allows for more precise machining.
Technical data:
Bevel angle: 45°
Bevel width (hypotenuse): 2 mm / 0.08 in as a maximum
Rounding radius: R 1,5 mm / 0.06 in
Speed 23,000 rpm.
Feeding: manual
Air consumption 320 l/min

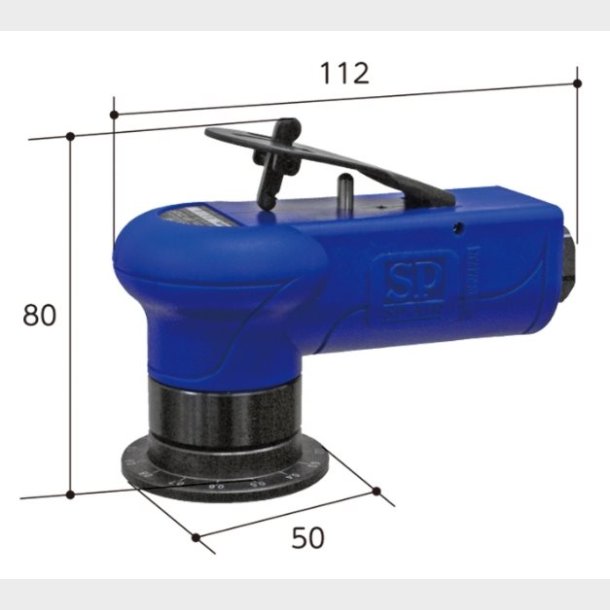

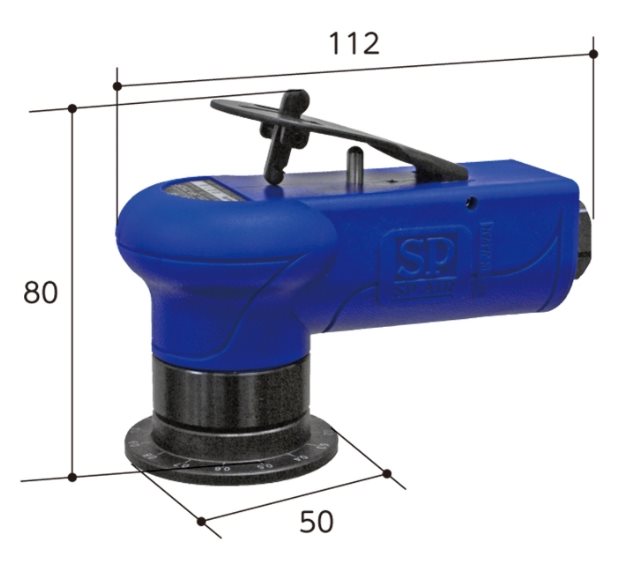

Dimensions: 112 x 60 x 48 mm / 4.4 x 2.36 x 1.9 in
Weight: 400 g / 0.88 lb
Number of cutting inserts: 3 pcs

  • 3 blade cutting head with changeable blades
  • Depth flange scale for setting cutting depth
  • Cuts circles with a minimum of 0.27-Inch and material thickness of 0.1-inch
  • Free speed 23,000 RPM and air consumption 2.5CFM

B2 AIR beveling machine is a great tool for fabrication, marine and automotive along with industrial application and when beveling the edges of metal gauge panels and metal tables (in motorcycle fabrication). The product features are 3 blade cutting head with changeable blades, depth flange scale for setting cutting depth, palm size tool cuts radius chamfers and straight chamfers, cuts circles with a minimum of 0.27-inch and material thickness of 0.1-inch, free Speed 23,000 RPM, overall length 4.375-inches, weight is 0,88 lbs. and air consumption 2.5CFM.
