Benefits at a glance
• Simple, safe operation.
• Low-cost replacement grinding disc with an extremely long
service life (one disc can often be used for months).
• Bevelling of work-pieces of 2.5 mm or more in thickness.
• Suction flange for industrial extractors supplied as
standard (internal diameter 35 mm).
• Winner of the Bavarian State Prize.Product information "ROLEI EF 165 Stationary deburring and bevelling machine with 45° fixed facet angle"
• Simple, safe operation.
• Low-cost replacement grinding disc with an extremely long
service life (one disc can often be used for months).
• Bevelling of work-pieces of 2.5 mm or more in thickness.
• Suction flange for industrial extractors supplied as
standard (internal diameter 35 mm).
• Winner of the Bavarian State Prize.Product information "ROLEI EF 165 Stationary deburring and bevelling machine with 45° fixed facet angle"

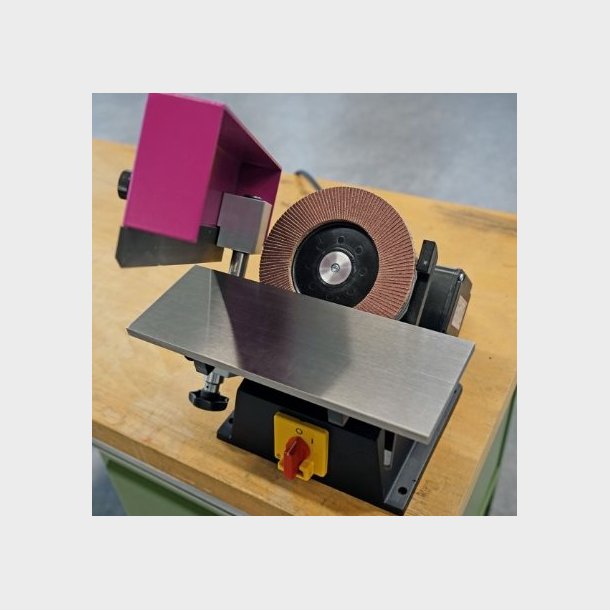

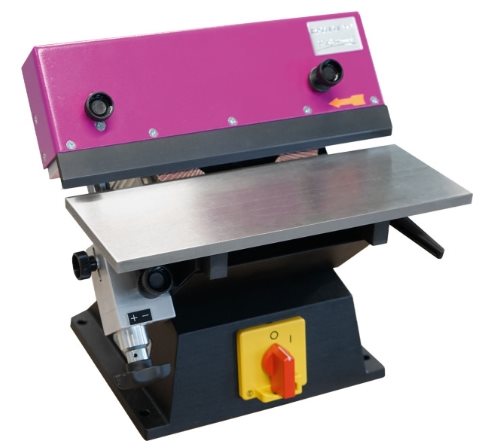

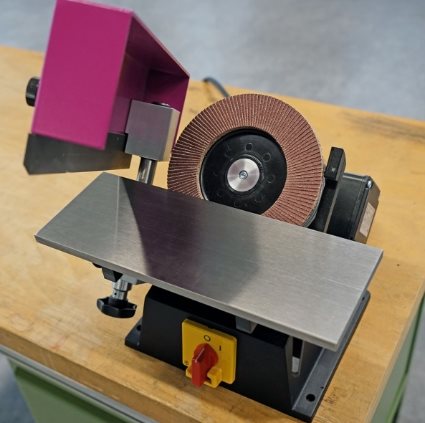

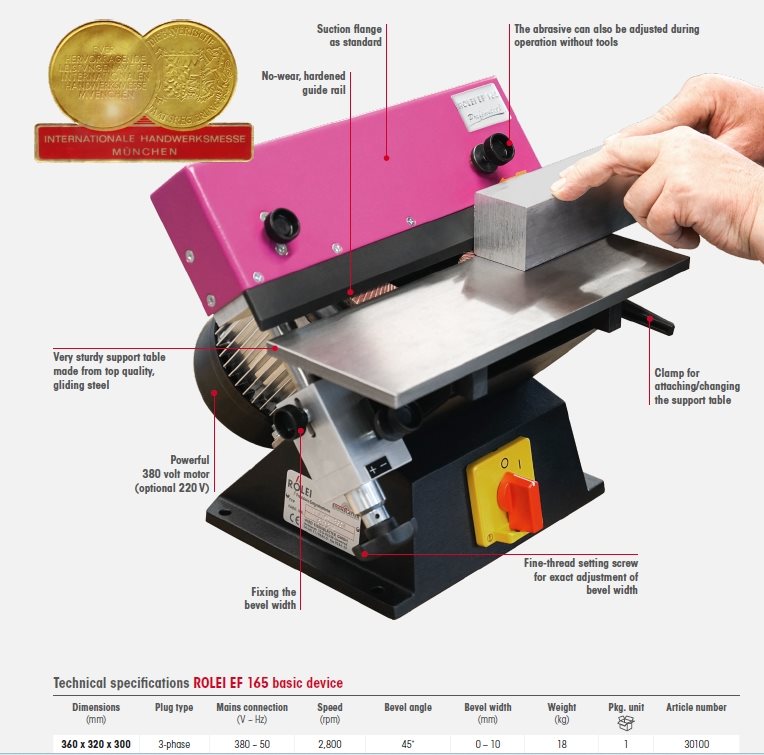

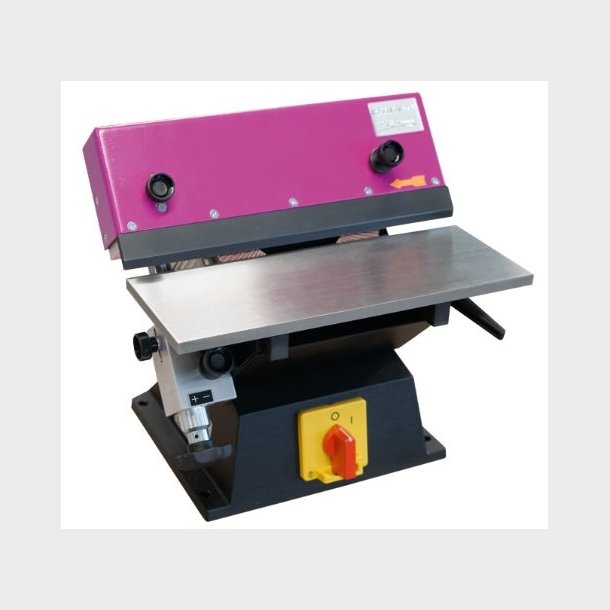

Stationary faceting and deburring machine with a fixed facet angle of 45 ° and continuously adjustable facet width for all metals from INOX to aluminum.
Stepless, precise adjustment of the facet width using a handwheel.
Features:
- Facet angle of 45 degrees.
- Facet width from 0–10 mm.
- Faceting possible from workpiece thicknesses of 2.5 mm.
- Optimized, fixed speed of 2,800 min-1.
- Simple and safe operation.
- Inexpensive replacement grinding disc with an enormous service life (a disc in use often lasts for months).
- Standard with suction flange for industrial vacuum cleaners (inner Ø 35 mm).
- Winner of the Bavarian State Prize.
- Weight 18 kg.
Set content:1 ROLEI EF 165 basic device
1 ROLEI special flap disc, grit 60
| Tool mount: | M14 thread |
| Device type: | Deburring machine |
| Cable / Battery: | cable |
| Suitable tools: | Discs |
| Plug type / mains connection: | 3 phases 380 volts ~ 50 Hz, EU (C+F) 220 - 240 volts ~ 50 - 60 Hz |
| Power consumption: | 550 watts |
| Max. tool dimension: | Durchmesser 170 mm |
| WEEE-Reg.-No.: | DE 51395731 |
