Benefits at a glance
• Simple, safe operation without prior familiarity.
• 2 speeds available (600 and 1,200 rpm).
• Powerful 380-volt three-phase motor for continuous
operation.
• Sturdy aluminium transmission with spindle mounts for
replacement tools.
• 1 set (2 units) of flap wheels deburrs about 2000 m of
sheet stainless steel.
• Replacement tools are easy to change.
• Suction flange for industrial extractors supplied as standard
(internal Ø 35 mm).
• Wear-free, hardened guide rail (infinitely adjustable).

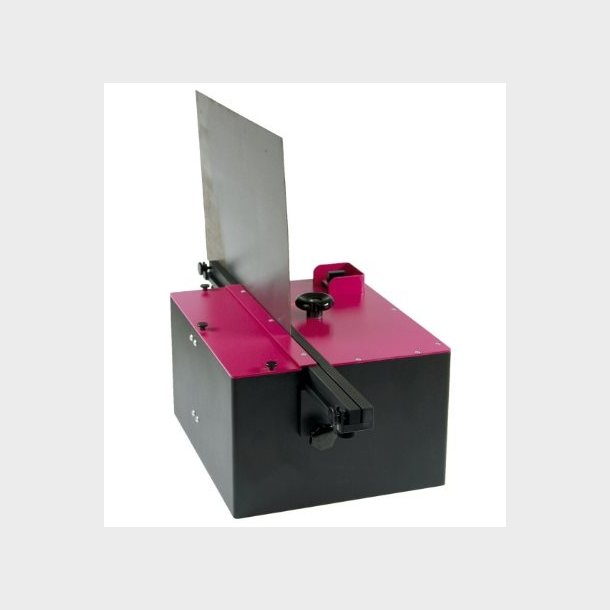

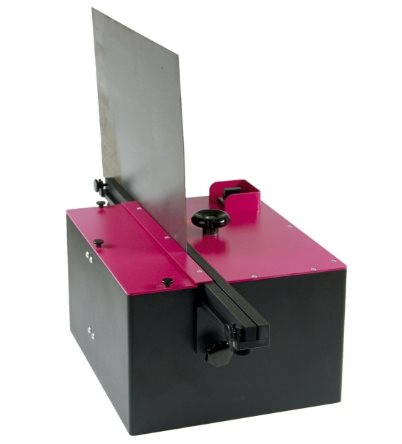

Product information "ROLEI BE 5 sheet metal deburring machine"
• Simple, safe operation without prior familiarity.
• 2 speeds available (600 and 1,200 rpm).
• Powerful 380-volt three-phase motor for continuous
operation.
• Sturdy aluminium transmission with spindle mounts for
replacement tools.
• 1 set (2 units) of flap wheels deburrs about 2000 m of
sheet stainless steel.
• Replacement tools are easy to change.
• Suction flange for industrial extractors supplied as standard
(internal Ø 35 mm).
• Wear-free, hardened guide rail (infinitely adjustable).
Product information "ROLEI BE 5 sheet metal deburring machine"

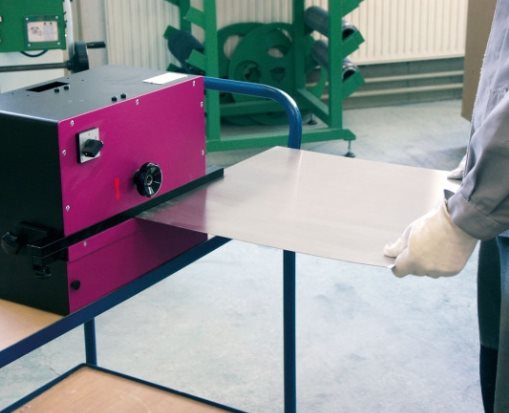

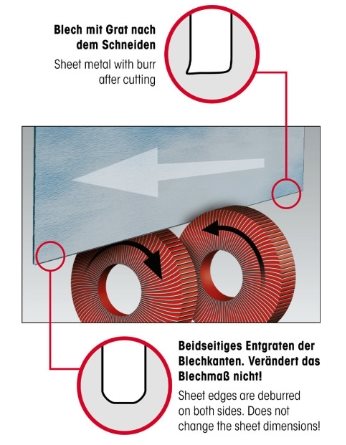

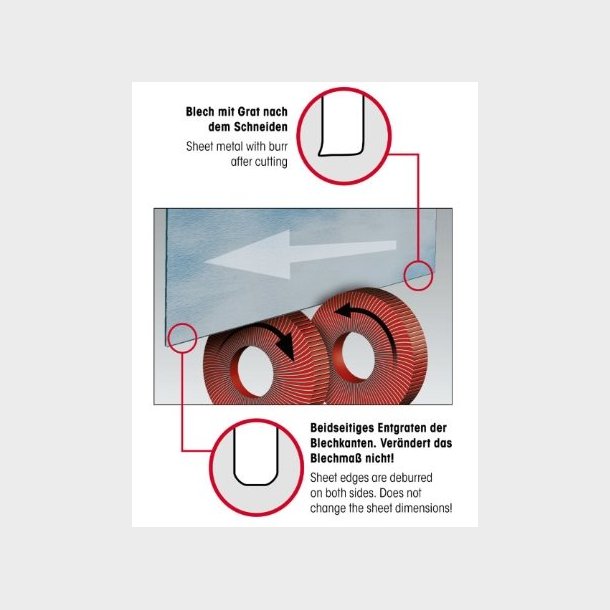

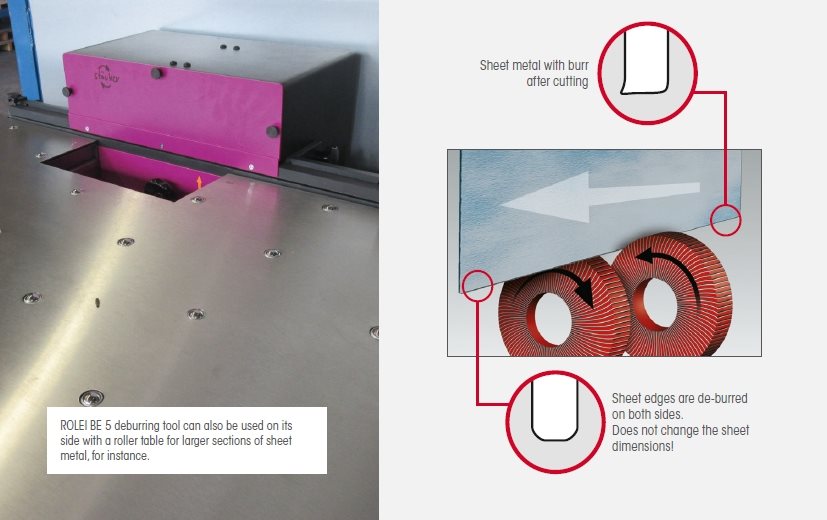

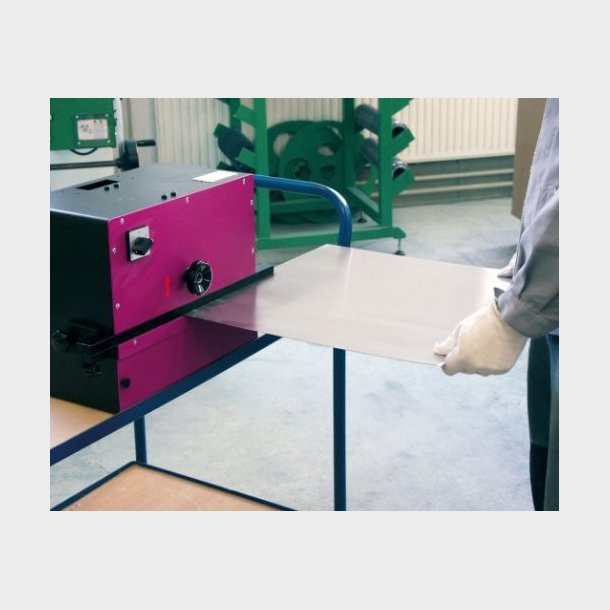

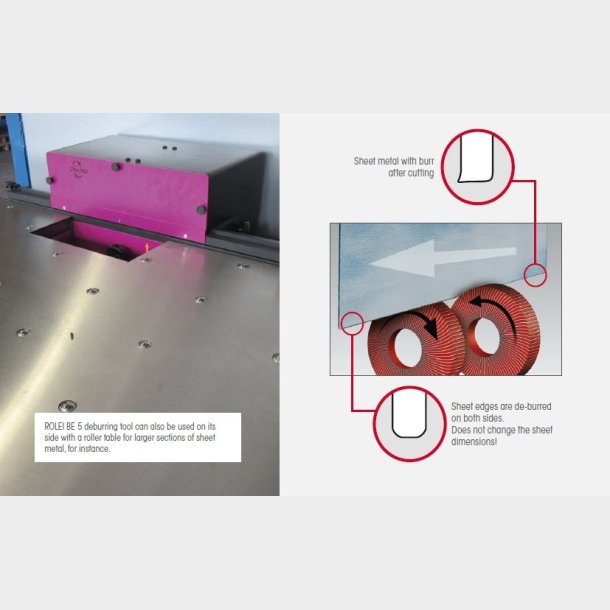

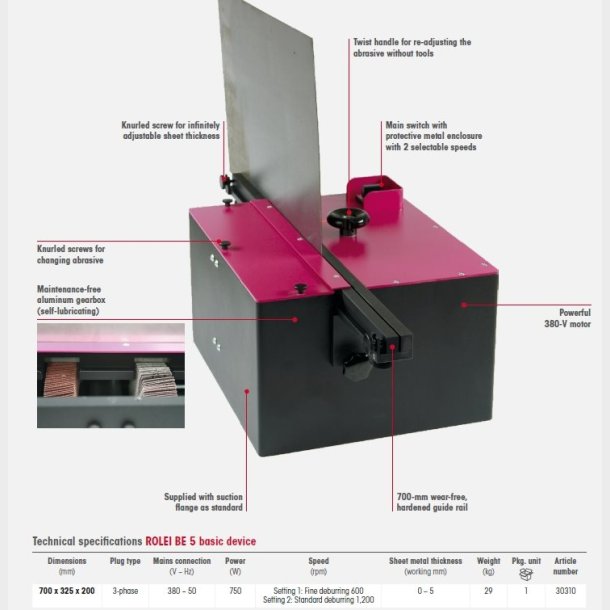

The ideal table-top or floor-standing device for the lightning-fast, double-sided deburring of sheet metal parts of all metals (including stainless steel) in one operation.

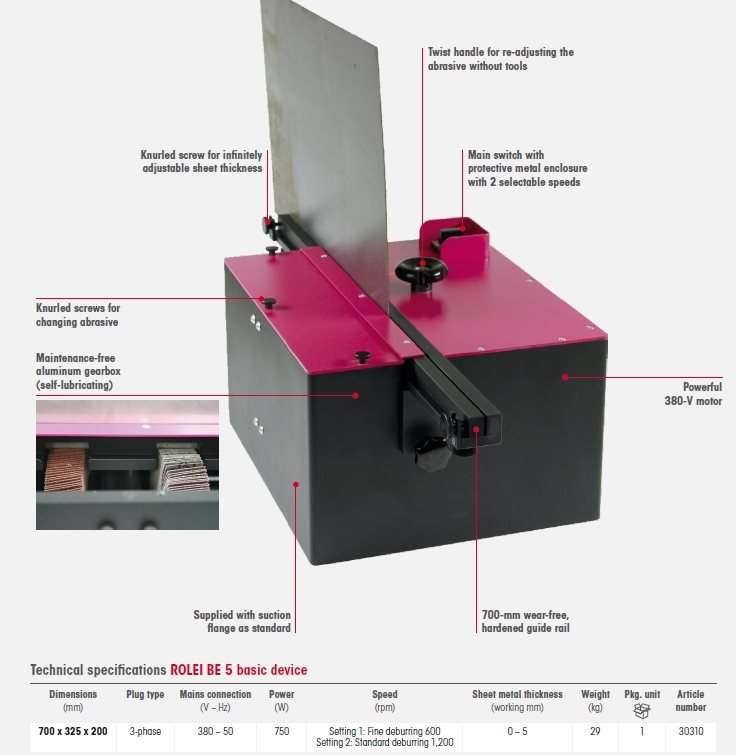

Features:
- Simple and safe operation without prior knowledge.
- 2 speeds selectable (600 rpm for fine deburring and 1,200 rpm for standard deburring).
- Powerful 380 volt three-phase motor for continuous use.
- Sheets up to approx. 5 mm sheet thickness.
- Robust aluminum gear with mounting spindles for replacement tools.
- Now with standard suction flange for industrial vacuum cleaners (inside Ø 35 mm).
- Wear-free, hardened guide rail (continuously adjustable).

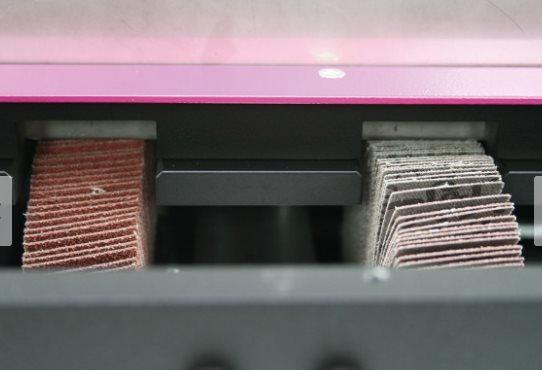

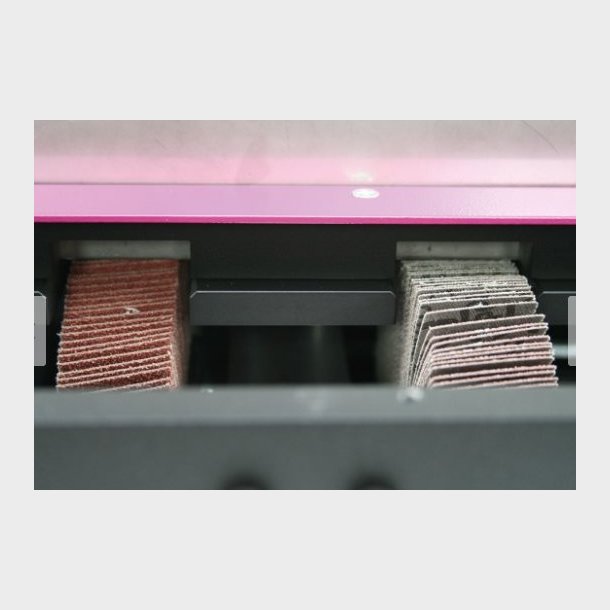

- 1 set (2 pieces) sanding mop wheels deburrs approx. 2,000 m of stainless steel sheet.
- Easy to change spare mop wheels.
Tip: To avoid damage to the ROLEI BE 5 gear, only use Original ROLEI mop wheels with 100% cotton fabric.
Set content:1 ROLEI BE 5 basic device
2 ROLEI BE 5 mop wheels grain 60
| Device type: | Deburring machine |
| Cable / Battery: | cable |
| Suitable tools: | Wheels |
| Plug type / mains connection: | 3 phases 380 volts ~ 50 Hz |
| Power consumption: | 750 watts |
| Max. tool dimension: | Räder 165 x 30 mm |
| Tool mount: | ROLEI BE5 Mop Räder |
| WEEE-Reg.-No.: | DE 51395731 |
