ML100
Max Ø 114mm
Straight and curved tube
1 stationINCLUDING:
- Blocking System for wheel rotation
- Foot pedal for belts opening and wheel unblocking
- Finishing belts inverterIt is without Automatic feeding and the dust extractor, you can buy this seperatly on the site.
Training and transport cost is not included
Straight and curved round tube finishing up to Ø114mm with maximum flexibility and consistency.

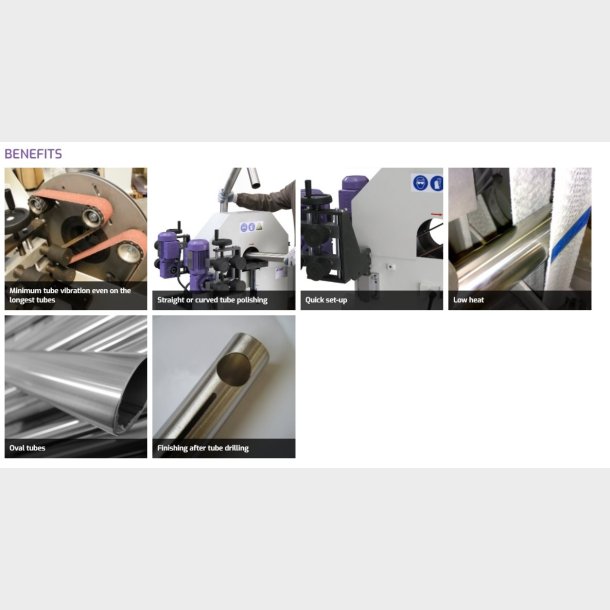

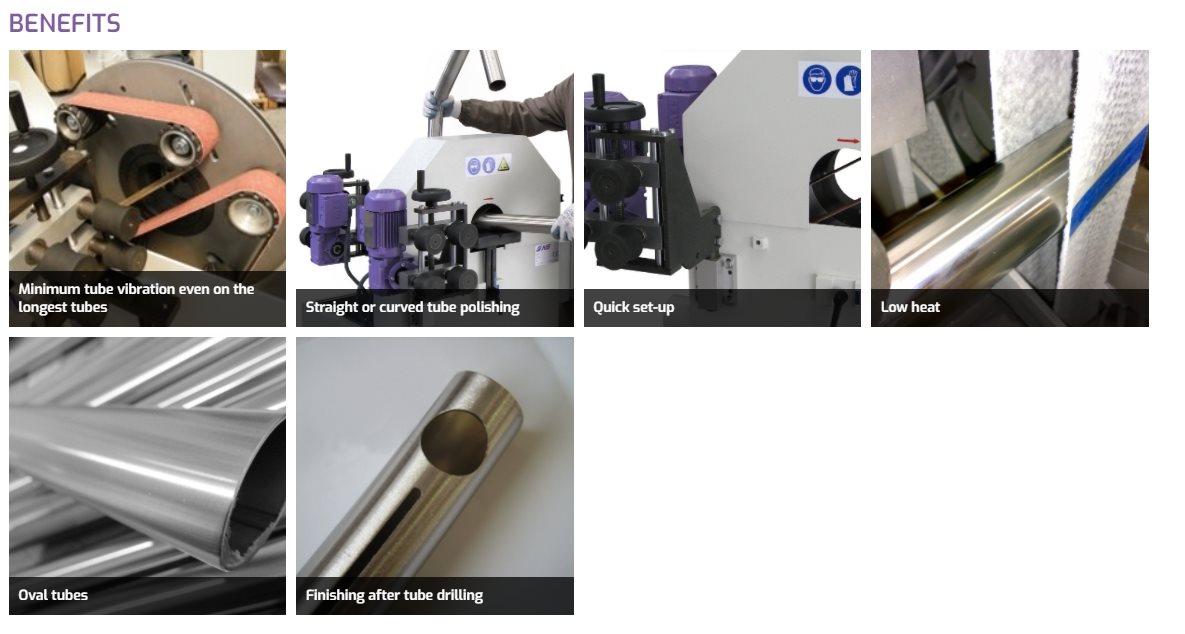

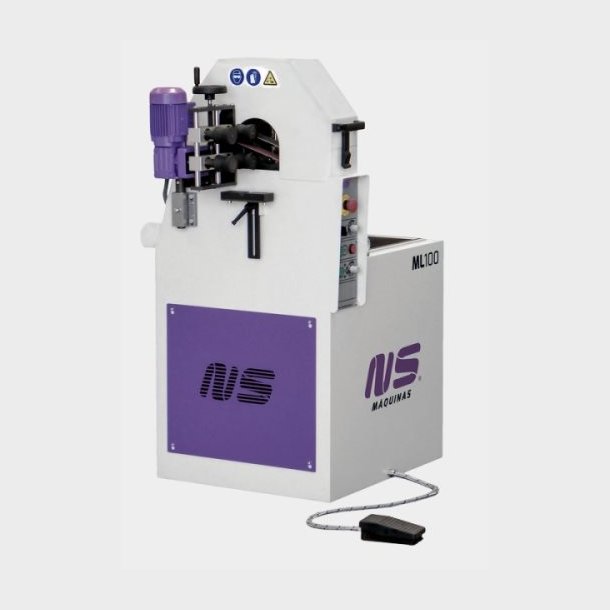

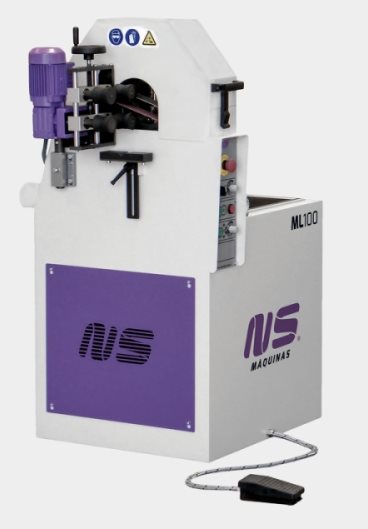

Tube polishing machine – ML100 – is the perfect choice for finishing the surface of round, oval, and elliptical tubes.
The ML planetary system allows the work to be done without rotating the tube, delivering the best results on both bent and curved tubes.
The auto feeding system transports straight tubes safely and automatically through the finishing station, delivering a consistent and highly productive tube polishing quality.
TECHNICAL DETAILS
| ML100 | |
| Working capacity (Ø mm) | 10 - 114 |
| No. Stations | 1 |
| Abrasive belt dimensions (mm) | (2x) 50x940 |
| Abrasive belt speed (m/s) | 10-25 |
| Feeding speed (m/m) | 1-5 |
| Abrasive belts motor (kw) | 3 |
| Wheel motor (kw) | 1.5 |
| Feeding motor (kw) | (2x) 0.12 |
| Total power (kw) | 5 |
| Consumption (A) | 14 |
| Dust extraction connection (Ømm) | 80 |
| Dimensions (mm) | 750x1000x1300 |
| Weight (kg) | 250 |
