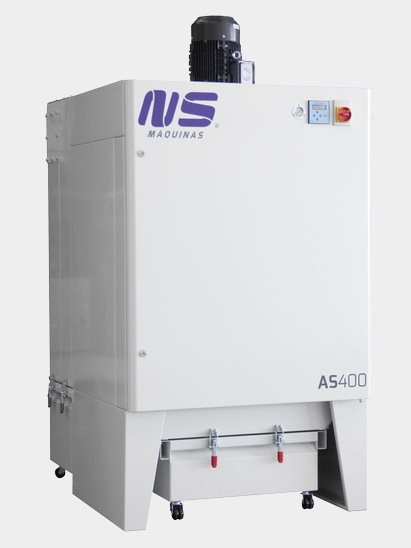

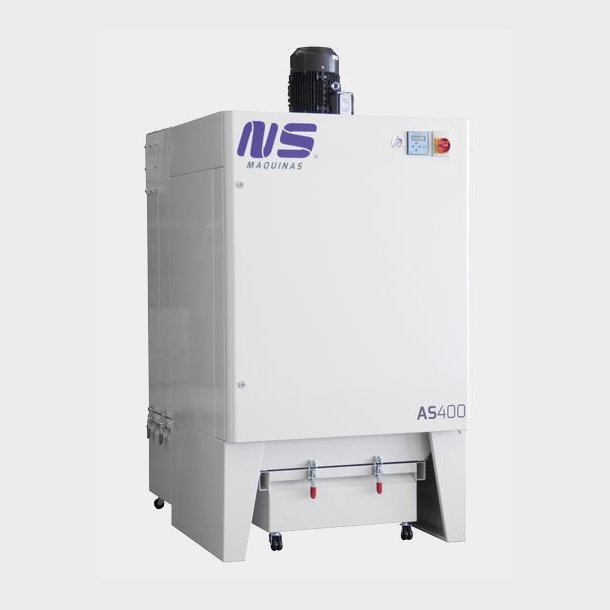

AS400
Up to 4 kW
Dry operation
Dust Extractor with filtering efficiency of 99,9%.
The AS400 dust extractor is the best solution for a clean machine and work environment because of its high filtering rate and capacity.
Due to the six high efficiency cartridges, combined with an efficient design, this system is perfect to keep the finishing and deburring machine clean and also to prevent the release of any dust in the work place.
This extractor features an automatic system to clean the filters with compressed air.
AS400 was thought for a perfect integration with NS Máquinas deburring and finishing machines.
TECHNICAL DETAILS
| AS400 | |
| Motor (kW) | 4 |
| Nominal air flow (m3/h) | 4000 |
| Fan (Ø mm) | 355 |
| Rpm | 2900 |
| Noise level (dB) | 81 |
| Cartridges (Ø mm) | (6x) Ø325x750 |
| Dimensions (mm) | 1200x1100x2550 |
| Weight (kg) | 470 |
