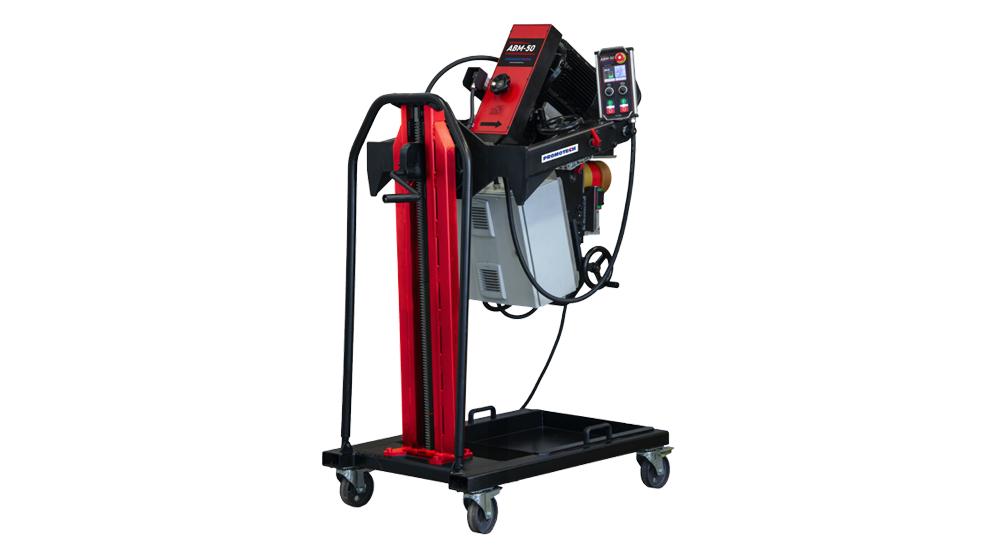

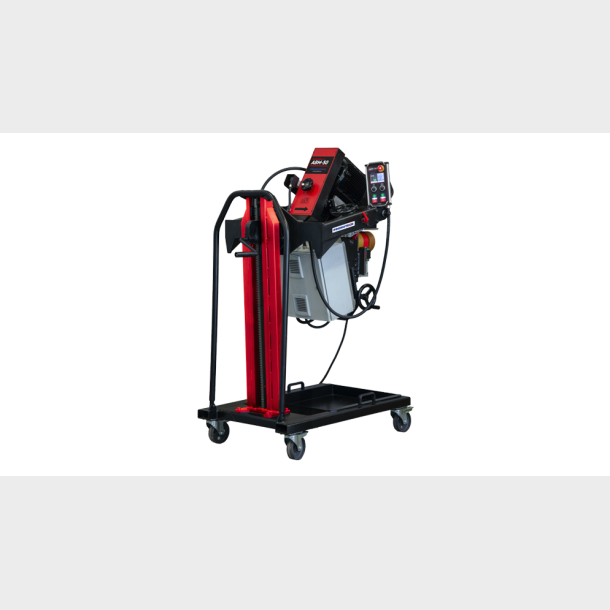

ABM-50 produces accurate high-quality double-sided bevels without thermal distortion or creation of heat affected zone on plate thickness range 8-80 mm (15/16 3 1/8) using a purpose designed milling head with eight 4-sided indexable cutting inserts. Continuously adjustable bevel angle between 15 and 60 degrees (for both top and bottom beveling) requires no tooling to change.Features & benefits auto-feed portable beveling

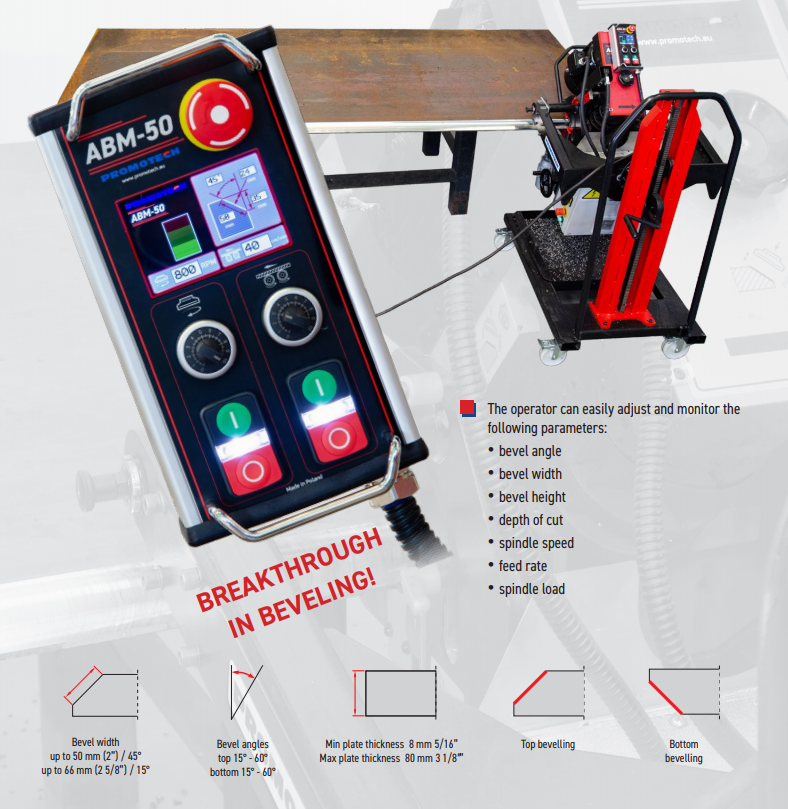

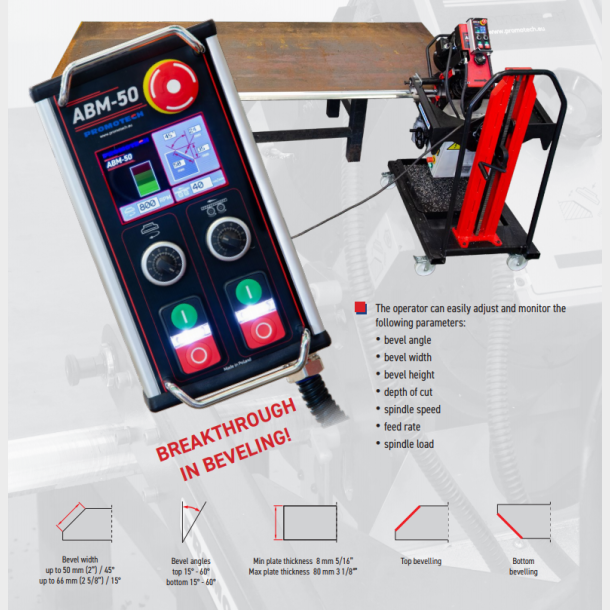

real-time measurement and on-screen display of exact bevel geometry and cutting parameters
bevel width up to 50 mm (2) at 45 degrees
180° inversion allows for creation of a double-sided bevel no need to rotate or flip heavy material reduces material handling costs and improves shop safety
variable spindle speed for work on a variety of steel grades and thicknesses
versatile and transportable on its own trolley
equipped with milling head including 8 replaceable inserts

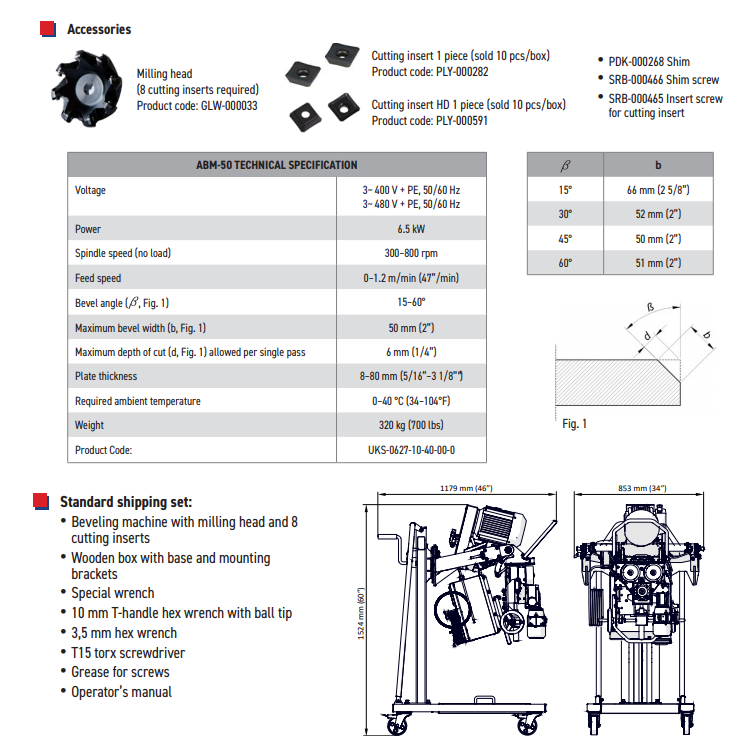

feedback-controlled overload systemStandard shipping set: Beveling machine with milling head and 8 cutting inserts
Wooden box with base and mounting brackets
Special wrench
10 mm T-handle hex wrench with ball tip
3,5 mm hex wrench
T15 torx screwdriver
Grease for screws
Operators manual
