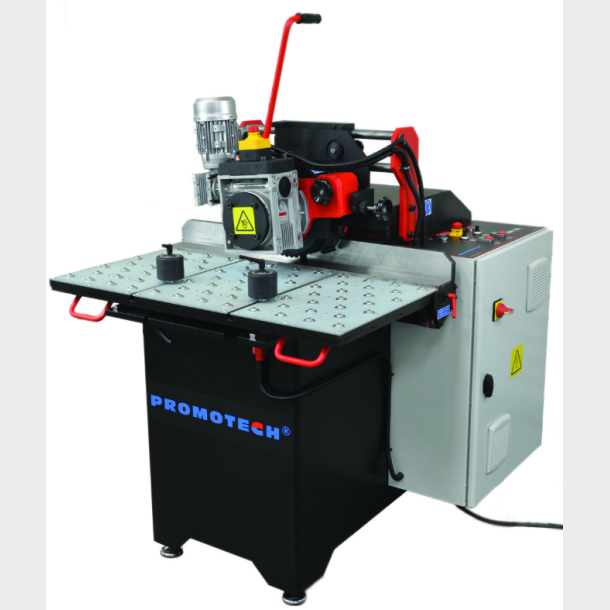

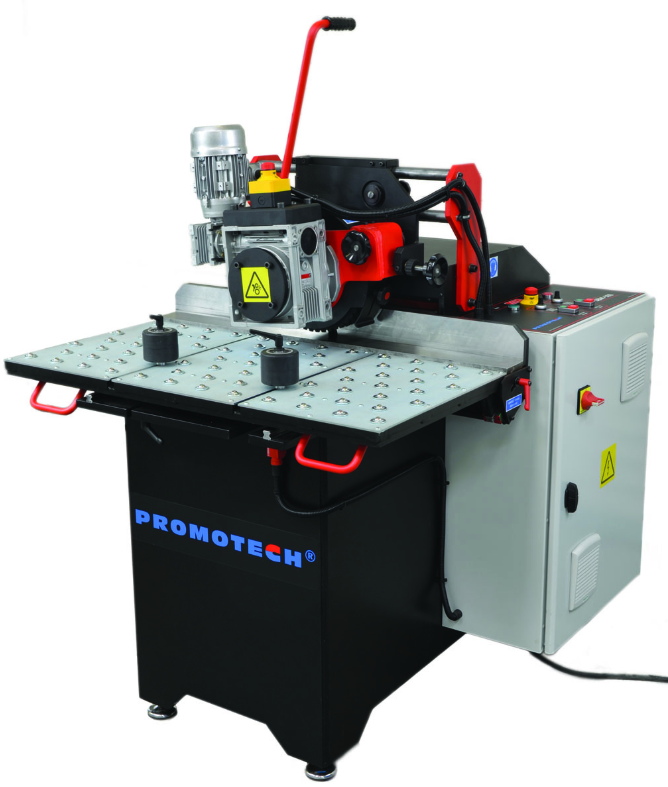

P013.-SBM 500.-with milling head10 inserts per milling head

176.080,00 DKK

Model/Varenr.: UKS-0573-10-00-00-0
pcs

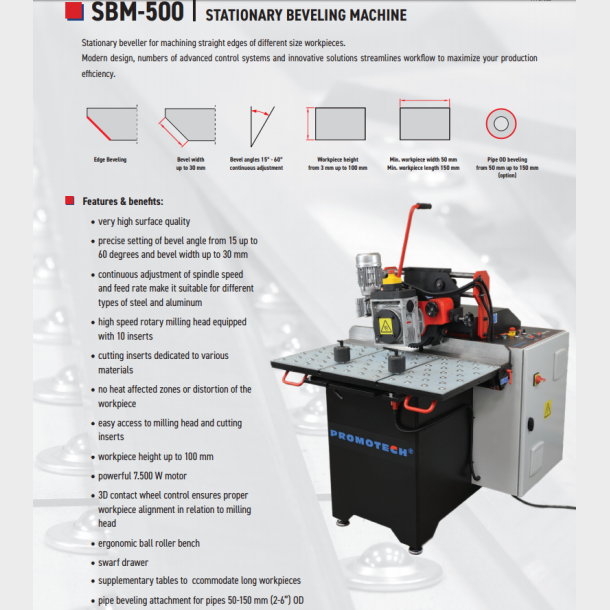

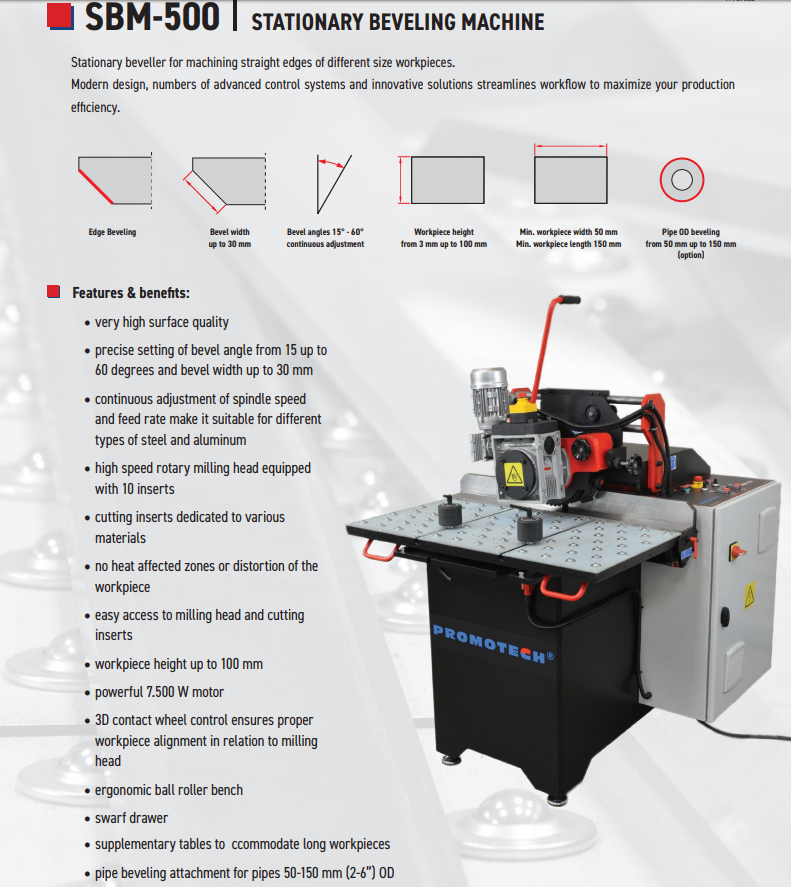

Stationary beveller for machining straight edges of different size workpieces. Modern design, numbers of advanced control systems and innovative solutions streamlines workflow to maximize your production efficiency.Key features
  • workpiece height up to 100 mm
  • powerful 7.500 W motor
  • ergonomic ball roller bench
  • swarf drawer
  • supplementary tables to ccommodate long workpieces
  • pipe beveling attachment for pipes 50-150 mm (2-6”) OD
  • 3D contact wheel control ensures proper workpiece alignment in relation to milling head
  • very high surface quality
  • high speed rotary milling head equipped with 10 inserts
  • cutting inserts dedicated to various materials
  • no heat affected zones or distortion of the workpiece
  • easy access to milling head and cutting inserts
  • precise setting of bevel angle from 15 up to 60 degrees and bevel width up to 30 mm
  • continuous adjustment of spindle speed and feed rate make it suitable for different types of steel and aluminum

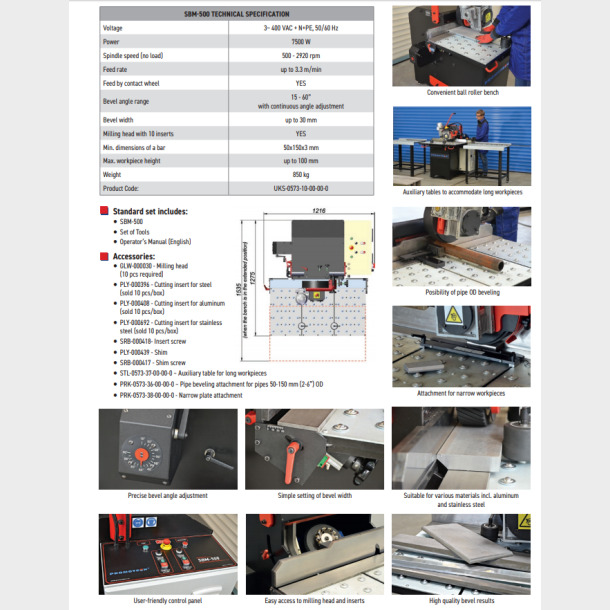

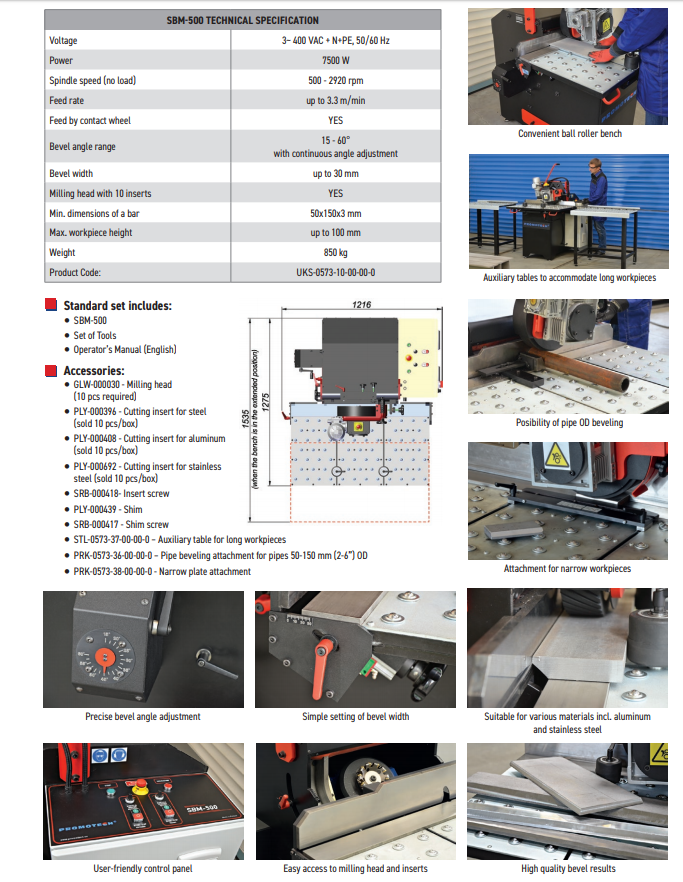

Standard set includes:• SBM-500
• Set of Tools
• Operator’s Manual (English)Accessories:• GLW-000030 - Milling head (10 pcs required)
• PLY-000396 - Cutting insert for steel (sold 10 pcs/box)
• PLY-000408 - Cutting insert for aluminum (sold 10 pcs/box)
• PLY-000692 - Cutting insert for stainless steel (sold 10 pcs/box)
• SRB-000418- Insert screw
• PLY-000439 - Shim
• SRB-000417 - Shim screw
• STL-0573-37-00-00-0 – Auxiliary table for long workpieces
• PRK-0573-36-00-00-0 – Pipe beveling attachment for pipes 50-150 mm (2-6”) OD
• PRK-0573-38-00-00-0 - Narrow plate attachment
