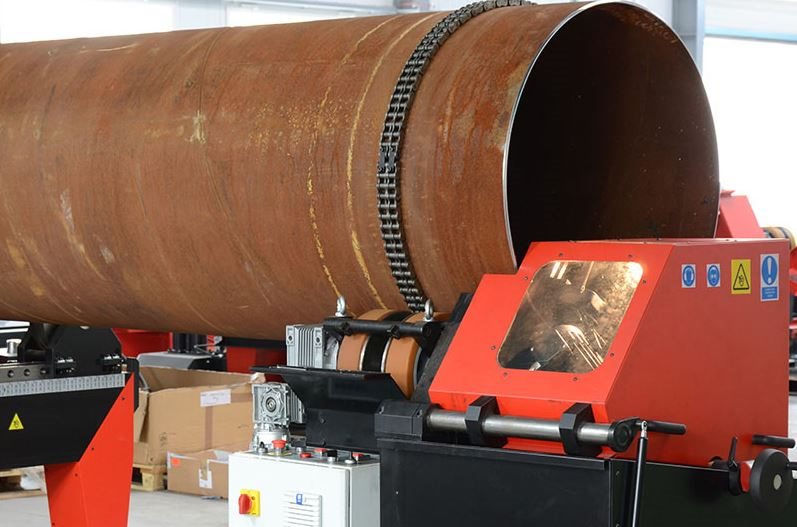

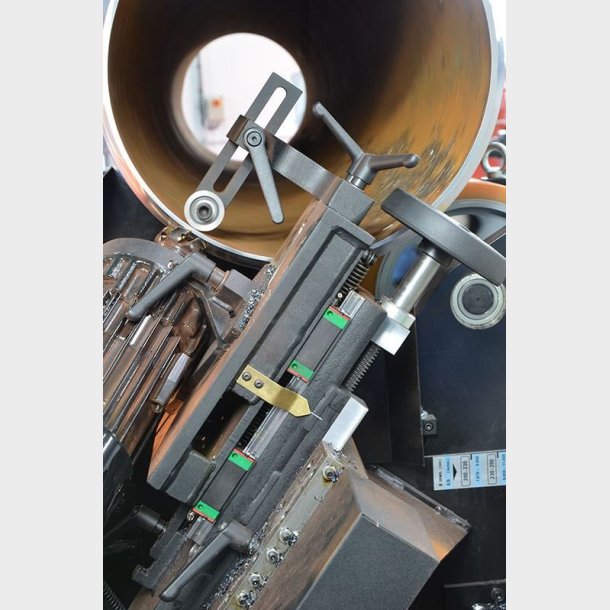

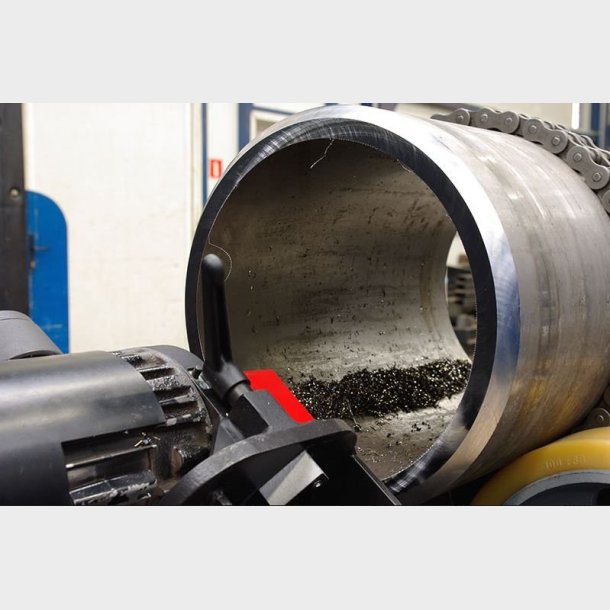

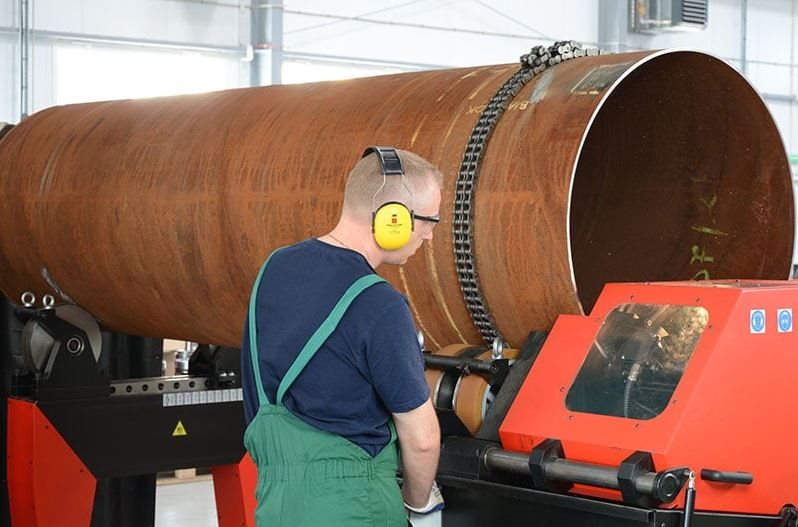

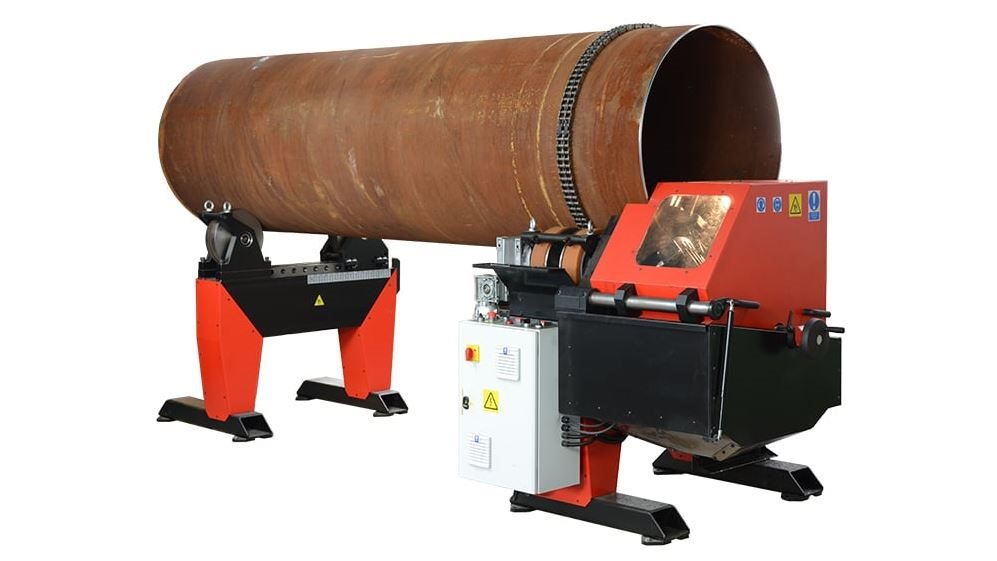

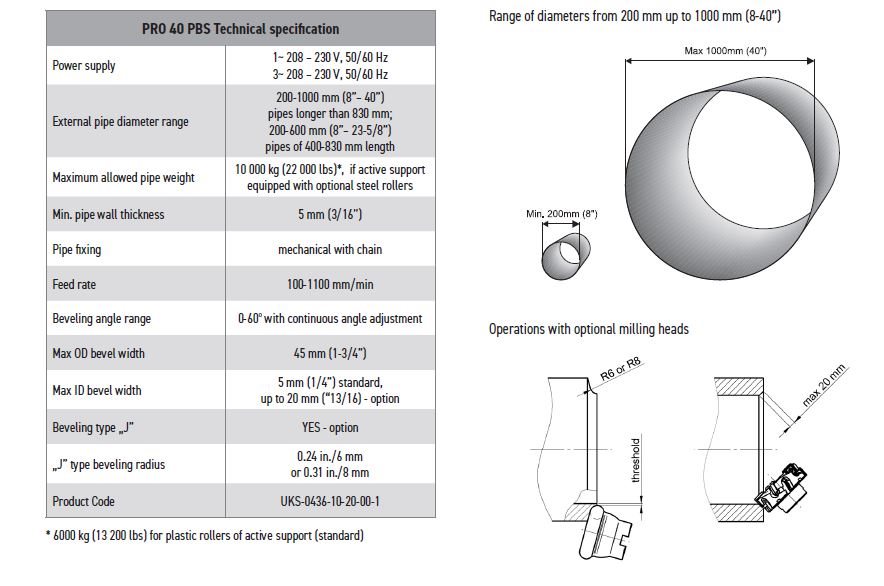

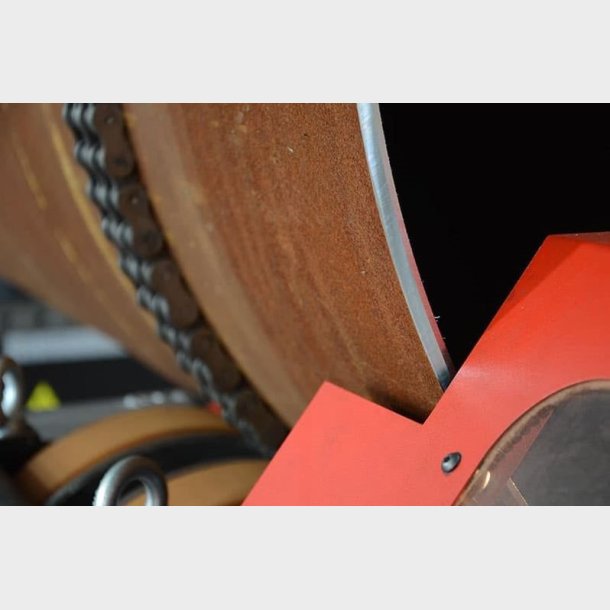

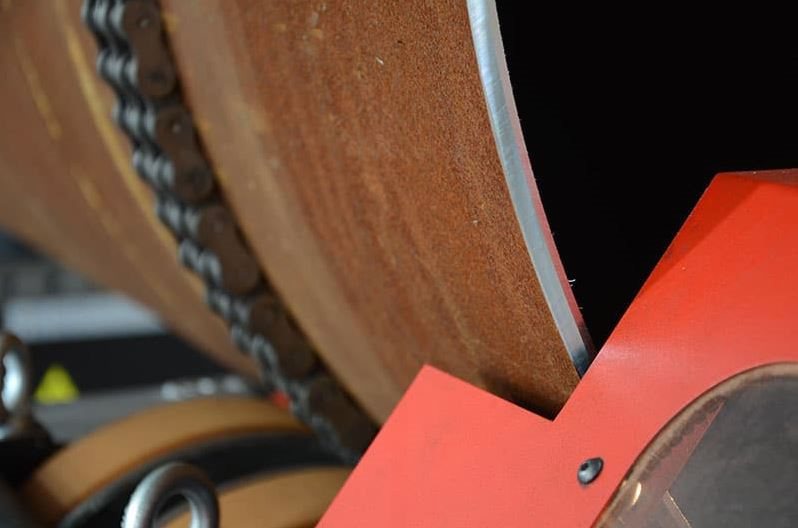

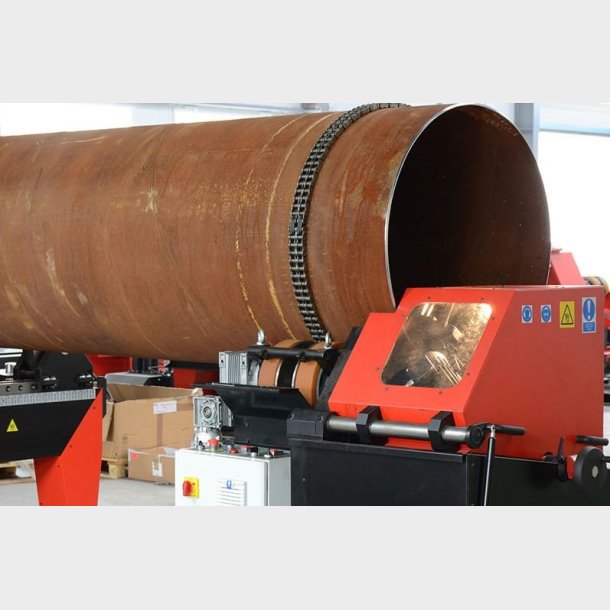

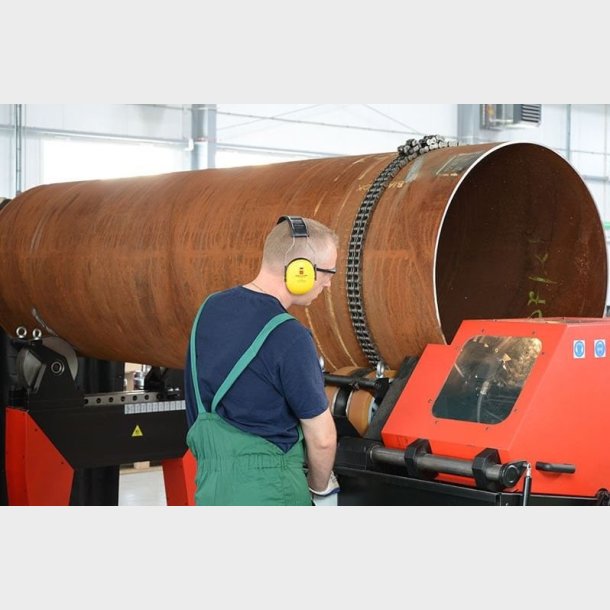

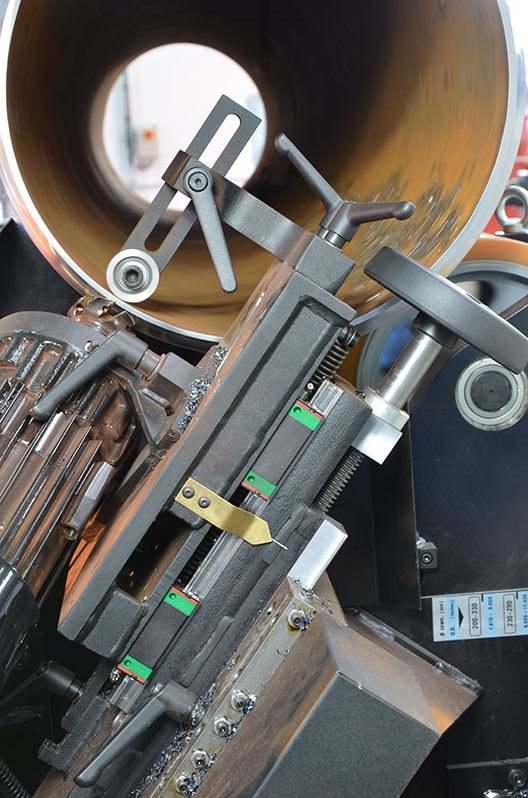

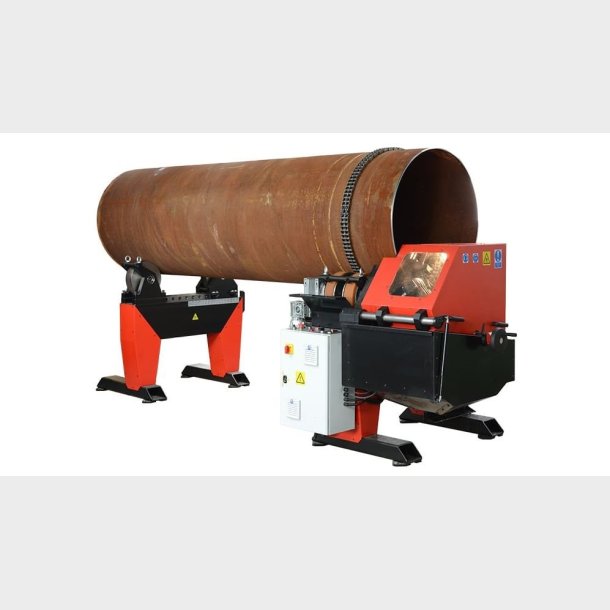

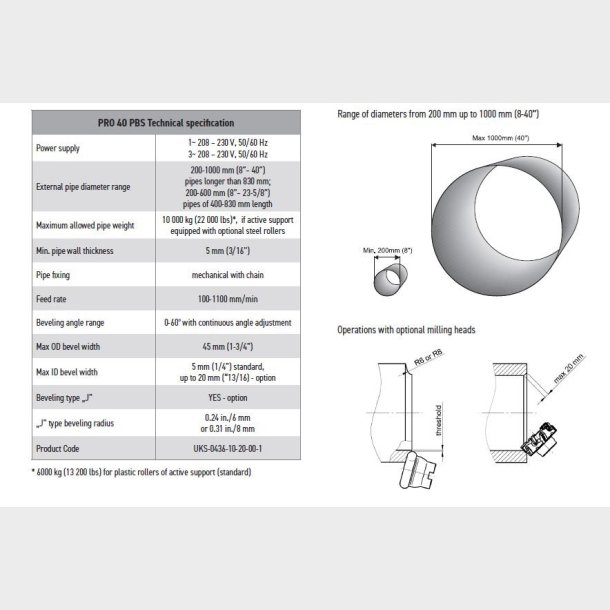

PRO 40 PBS is designed for beveling and facing pipes, tanks or tubes in a range of diameters from 200 mm to 1000 mm (8-40). High-speed rotary milling head with replaceable inserts enables effective and efficient machining with bevel widths up to 45 mm (1-3/4) and angles between 0o and 60o.

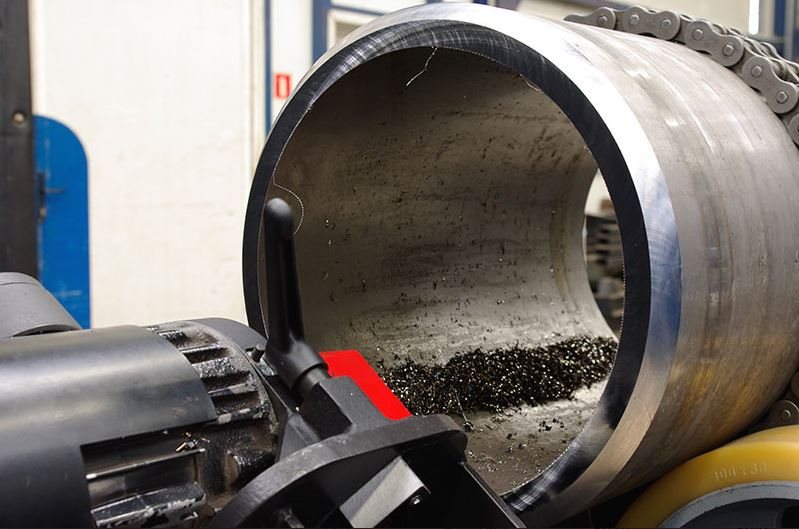

Internal beveling and J-groove end preparation is optionally available.
Use of heavy duty milling head in PRO 40 PBS offers accurate bevels in a fraction of the time compared to traditional single point machining. This feature saves time and money by excellent efficiency.Standard shipping set: stationary pipe beveling machine

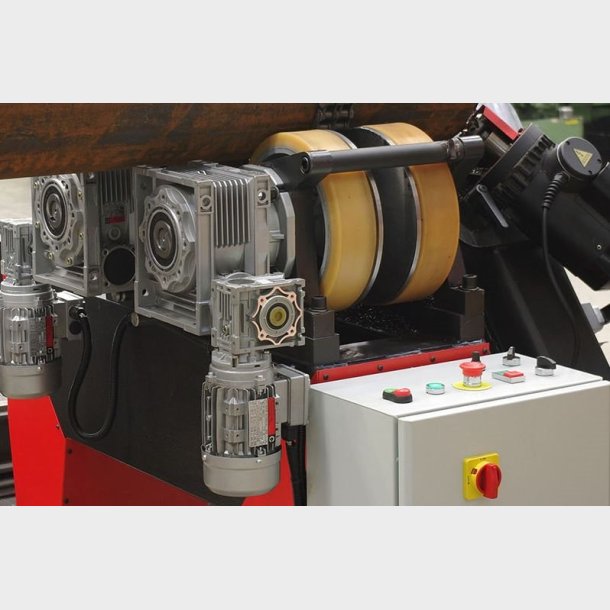

active support (with plastic rollers)
passive support (with steel rollers)
standard milling head with 7 cutting inserts
set of guiding chains
10 mm hex wrench
8 mm hex wrench
5 mm hex wrench
torx T15P screwdriver
Operators Manual
wooden box
Product code: UKS-0436-10-20-00-1
